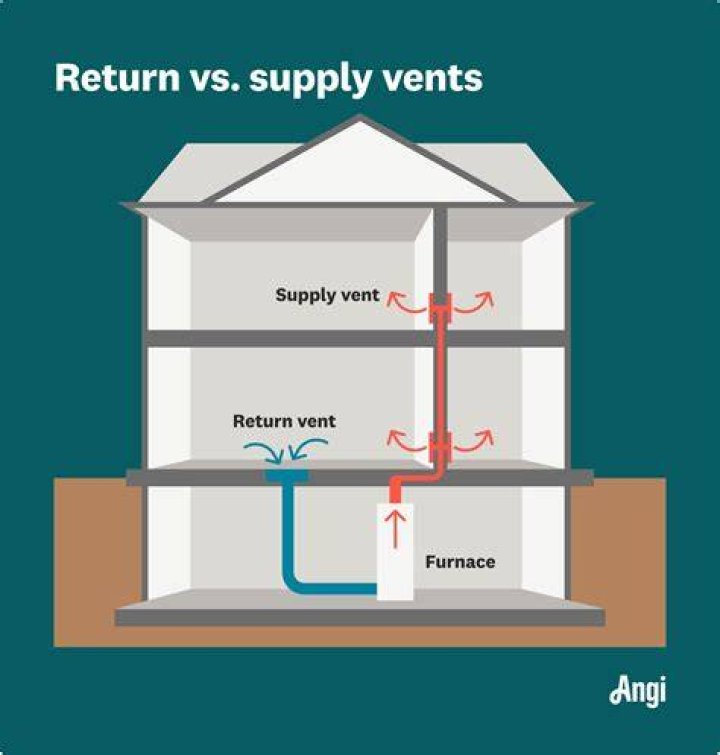

An air return is a vent grille that is usually located either in a hallway or in the ceiling, and its purpose is to extract air from a room and recycle it through the system to further condition it by cooling or heating. Air returns don’t have a damper as they need to allow free flow of air into the vent.
Do all ducts have dampers?
Every house is different. … Hopefully most homes have a damper in each one of the supply ducts. Your home may have a supply duct go to the right and you might have one go to the left off of your furnace. You’ll also typically have a damper in the supply duct going to your upstairs.
Should return air ducts be sealed?
Return systems should be “hard” ducted and sealed with mastic in order to be airtight. Building cavities should never be used as return ducts. Stud bays or cavities should not be used for returns.
What does a return air with damper do?
Air Handler Return Dampers | HVAC Components By setting up the air handler in this way it makes the system far more efficient because it sends the mixing box preconditioned air. It also makes use of the energy contained in the exhaust or relief air so energy is recovered and not wasted.
How much cold air return do you need?
Having several return vents (ideally one in every room, but even two or three is better than just one) creates consistent air pressure. If you have one return vent, your home is fine. Keep the doors to each room open so air can properly circulate.
What are duct dampers?
An HVAC damper (also called a duct damper) is a movable plate, located in the ductwork, that regulates airflow and redirects it to specific areas of the home. Dampers are typically used in zoning or “zone control” systems.
Is it okay to close air vents?
Closing the vents doesn’t do it any favors. In fact, instead of helping the air conditioner cool less, closed registers force the same amount of air through other ducts. This builds pressure in the system and makes your HVAC system work harder to distribute the air where you need it.
Is my HVAC damper open or closed?
The air control plate in a manual damper is turned by a lever on the outside of your duct. If the damper handle is in a horizontal position, the damper plate has been set to open. If the damper handle is set vertically, the damper is closed to block air flow.
Where are the dampers located?
Dampers are usually found where the main trunk line connects to the round supply duct. These are the pieces of duct work that supplies air to the various areas of your home. You will most likely find a wing nut bolt or a lever that you can turn to adjust the position of the damper. Turn this to a full open position.
What happens if there is not enough return air?
If there is not enough return air available, your HVAC system will not heat or cool properly. … If not enough air is brought back, your HVAC system will not be able to keep up with temperature demands. In some cases, two returns may be necessary to provide enough return air.
Article first time published on
Do air return vents need filters?
AC return vents do not need filters. Putting extra filters on air conditioning return vents will reduce the performance and lifespan of the air conditioner. The filters will reduce the airflow and put stress on the AC fan motor.
Is a return air vent necessary?
While it is a myth that air return grilles are required in each and every room in the house, it is definitely necessary to have more than one of these grilles installed at strategic places in the house. … Likewise, you can also install these in rooms that have a high footfall or usage in the house.
Can flexible duct be used for return air?
Yes! You can use flex ducts for your return ducts. However, you have to make sure it fulfills all the necessary criteria. These include pressure checks, proper wrapping, and marking, airflow control, etc.
Can return vents be covered?
Keep couches, chairs and other large pieces of furniture at least 10 inches away from your cold air return vents. Avoid covering your cold air return vents with curtains, drapes or rugs. Always check your air filters and replace them when needed. Clogged air filters can also cause cold air return blockages.
How large should return air duct be?
A typical supply vent is 4 by 10 to 12 inches and a typical return vent is 16 by 20 inches or larger. Houses often have two or more return collecting points, each with a filter, which join before re-entering the heating unit.
What size return duct do I need for a 3 ton?
Electric heat pumps shall be tested in accordance with UL 559 or UL 1995. Example: 3.5 ton heat pump. The duct for this system must be sized by using 6 square inches of clear duct area for each 1000 BTU of cooling. Each ton of cooling contains 12,000 BTU.
What will blocking a cold air return do?
Blocking air return vents causes your system to work harder, as there is less air flow to move the air back to the furnace. This continued strain on the HVAC system can lead to a decrease in performance and more HVAC repairs down the road.
Why is my room so hot compared to the rest of the house?
Dirty air filter—A dirty filter restricts airflow, not letting your home get enough cool air. Closed vents—Closed vents in rooms can cause them to be hotter than other rooms. Open windows—Your conditioned air can flow out of open windows, leaving uneven temperatures in your home.
Is it OK to put a couch over a vent?
The short answer to this question is “No.” Vents are there to provide for a necessary free flow of air. Block that flow, and your home will run sub-optimally, and you could even cause damage to your HVAC system.
Why are dampers used?
A damper is a valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air-handling equipment. A damper may be used to cut off central air conditioning (heating or cooling) to an unused room, or to regulate it for room-by-room temperature and climate control.
What is the difference between louver and damper?
The difference in terms of panels In HVAC systems, dampers and louvers are used to regulate the flow of air. … The most prominent difference between Louvers and Dampers lies on their blades. Louver blades are usually constant and unable to move while the dampers have movable blades.
How do you increase airflow in ductwork?
- Check Vents and Registers. One of the simplest things you can do to increase airflow in your home is to check the vents and registers in each room. …
- Turn on Ceiling Fans. …
- Schedule HVAC Maintenance. …
- Consider Duct Cleaning. …
- Invest in a Ventilator.
Should I close my upstairs vents in the winter?
If you have a top/bottom return vent setup, close the top vents in the winter months. Closing the top vents will make your system draw in air from the bottom vents that are at the low point in the room where cold air settles.
Can a return air duct be too small?
If the return duct is too small, there are an inadequate number of return grilles or they are undersized, it can’t return enough air to recirculate back into the system. … This poor airflow not only makes your system run longer than necessary to provide comfort, but increases your energy bill as well.
Should return air vents be high or low?
For optimal efficiency, it’s ideal to have return registers installed. To ensure efficiency during the cooling season, your home should have high registers. High return registers draw hot air that rises to the ceiling back into the system to repeat the cooling cycle.
How do you install a return vent filter?
- Turn the unit off. …
- Open up your vent and remove the used filter.
- Make sure the Air Flow Arrows are pointing toward the HVAC Unit.
- Install the new filter and close your vent.
- Turn the unit on and you’re done!
What is a return air filter?
A Return Air Filter keeps dust and other debris from entering a heating and cooling system and working properly. … Air is blown into a home through the vents and pulled into the unit through what is called a Return Air. The same air is cycled through a house and unit over-and-over cooling or heating the air.
What is a cold air return?
Cold air returns are what allow your furnace to “inhale” your home’s air. … Once inside your cold air returns, that air travels through your ductwork back to your furnace where it is filtered, heated and sent back to warm your home.
What is the purpose of cold air return vents?
The return registers draw stale air into the ductwork, where it’s pulled through the filter to capture dust and debris and then delivered back to the HVAC equipment for reconditioning. However, the most important function of the cold air return registers is ensuring ample airflow through the HVAC system.
What is the max recommended length of flexible duct?
Flexible air connectors which are listed to UL 181 are allowed by the standard in lengths up to 14 feet. This product is specifically evaluated for the maximum length up to 14 feet, and the manufacturer’s installation instructions are reviewed to ensure proper installation up to this length.
