These bolts are generally used for non-critical joints and applications. A grade 5 bolt is distinguished by 3 radial lines and promises tensile strengths between 105,000 and 120,000 psi. They are most commonly found in automotive applications. This sought-after grade 8 bolt can be distinguished by six raised dashes.
How much weight can a Grade 5 bolt hold?
Nom Bolt Size (in)Grade255/16290044503/8425066007/1658509050
How hard is a Grade 5 bolt?
Grade 5 Bolts and fasteners are made of medium strength carbon steel and are specified under the Society of Automotive Engineers (SAE). … These bolts are heat treated in a controlled atmosphere from 1⁄4 in. through 1-1/2 in. with a minimum tensile strength of 120,000 psi in diameters through 1 in.
What is the shear strength of a Grade 5 bolt?
For example, an SAE grade 5 hex cap screw has a specified minimum tensile strength of 120,000 psi. Therefore, for design purposes, its shear strength could be reasonably assumed to be 70,000 psi.”
What are Grade 5 bolts rated for?

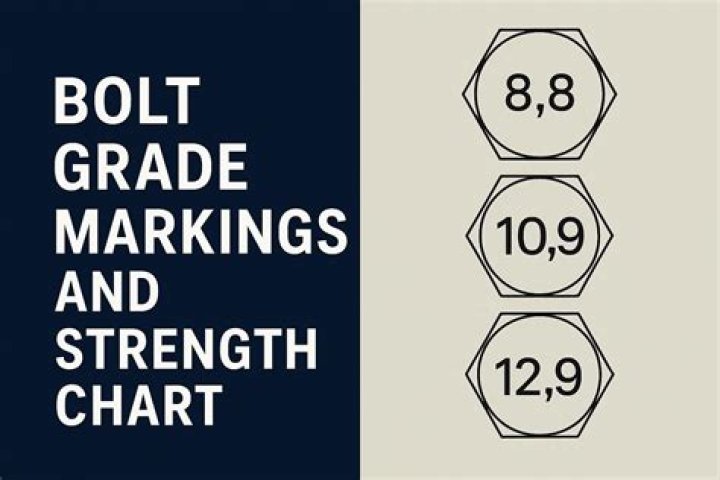

Bolt Grade Markings & Strength Chart – Inch Steel BoltsBolt Grade / SpecificationMaterialTensile Strength Min psiGrade 5 – SAE J429 Bolts, Screws and StudsMedium carbon steel or carbon steel with additives, quenched and tempered120,000 105,000
What is the strongest grade bolt?
Grade 9 structural bolts, also known as grade 9 hex cap screws, are one the strongest structural bolts that can be used today. While the typical grade 8 bolt has a tensile strength of 150,000 PSI, a grade 9 bolt has a tensile strength of 180,000PSI.
Should I use Grade 5 or Grade 8 bolts?
Grade 8 bolts have been hardened more than grade 5 bolts. Thus they are stronger and are used in demanding applications such as automotive suspensions.
How much force can a bolt withstand?
Steel bolts are graded according to newtons per millimeter squared for bolt tensile strength as compared to yield strength. For example, a steel bolt with a rating of 5.5 will provide roughly 500 newtons/mm2 of bolt tensile strength and approximately 400 newtons/mm2 of yield strength.
What is the hardest bolt to break?
The strongest commercial-quality bolt is grade 8, marked by six raised dashes; its medium-carbon alloy steel has been quenched and tempered to achieve a tensile strength of 150,000 psi.
How much weight can a bolt support?
For example, an eye bolt with a 1/4 inch shank can typically hold up to 600 pounds at a straight pull (no angle). However, at a 15 degree angle, the maximum weight capacity drops to 480 pounds (80% of the “straight pull” weight capacity).
Article first time published on
What is the difference between Grade 5 and Grade A bolts?
Grade/ClassStrengthGrade 2Low strength.Grade 2H NutsStrength is similar to Grade 5. Use with ASTM A325 structural bolts.Grade 5Medium strength.
Are Grade 5 bolts stainless?
Stainless Steel Grades & Strength Stainless commonly comes in grades 18.8 (304) or T316. Stainless steel bolts are rated for corrosion resistance. … A stainless steel bolt has the same PSI rating as a grade 5 bolt (125,000 PSI). A grade 8 bolt has a stronger rating with a PSI of 150,000.
Will Grade 5 bolts rust?
Many other grades exist but are used far less often. Grade 2, 5, and 8 are usually plated with a slightly blue-ish or yellow zinc coating, or are galvanized, to resist corrosion.
How many PSI is a Grade 5 bolt?
Head MarkingGrade and MaterialMechanical PropertiesMin. Tensile Strength (psi)No MarkingsGrade 2 Low or medium carbon steel60,0003 Radial LinesGrade 5 Medium carbon steel, quenched and tempered120,000105,000
What type of steel is Grade 5 bolts?
Grade 5 alloy steel is a medium carbon zinc plated alloy steel that is heat treated to increase hardness. Grade 5 bolts have three (3) evenly spaced hash marks on the head markings (manufacturers mark may also be included).
Is Grade 5 stronger than stainless steel?
The PSI rating of a stainless steel bolt is the same as that of a grade 5 bolt (125,000 PSI). With a PSI of 150,000, a grade 8 bolt has a higher rating.
Can I use Grade 5 bolts for suspension?
Ideally you want OEM bolts for any suspension application. A Grade 8 will be strong but brittle. Any Grade 5 bolt wil be weak in this application.
What grade bolt has the highest shear strength?
- 12.9 Bolts. A 12.9 bolt is one of the highest grade of bolts produced. Known for their high tensile strength, they are built with both hex and Torx heads and are available in zinc or chrome finishes. …
- 12.9 Shear Strength. The minimum tensile strength of a 12.9 bolt is 1220 MPa.
What grade bolt do I need?
Bolt Grade Markings Each grade has a specific bolt strength. No matter the system used to grade the bolts, the higher number means the stronger the bolt. For most home and automotive applications, you won’t need anything more than a grade 8 bolt strength or metric class 10.9.
Are stainless steel bolts stronger than high tensile?
Stainless steel fasteners available on the Australian market in the main are equal to or higher in tensile strength than the carbon and low alloy steel fasteners commercially used, and are higher strength than most other corrosion resistant fasteners.
How do you know if a bolt is Grade 5?
Grade 5 bolts are case hardened, meaning the bolt has been heated enough to hardened the outside of the bolt but not enough to harden the inside portion. Grade 5 bolts are identified by 3 evenly spaced radial lines on the head.
What is a grade 4.6 bolt?
The specification Class 4.6 Threaded Rod is a standard that covers fasteners manufactured from either Low carbon steel or medium carbon steel. … The ultimate material strength of Grade 4.6 Threaded Rod is 40 Mpa while its yield strength or the proof stress is 60% that of the ultimate strength.
What does 8.8 on a bolt mean?
A property class (PC) is the metric equivalent of a grade in inch series terminology. … So, in English, a PC 8.8 bolt is a bolt with a nominal tensile strength of 800 MPa and a nominal yield strength that is 80% of the bolt’s nominal tensile strength, or 640 MPa.
How much weight can a M20 bolt hold?
SizeGrade 8.8Grade 12.9M169,100kg15,200kgM2014,700kg23,800kgM2421,200kg34,200kgM3033,700kg54,400kg
How much weight can a 3/8 grade 5 bolt hold?
A 3/8-inch bolt of this type is rated to 7,000 pounds in 6,000 psi concrete (basically granite) and 4,000 pounds in 2,000 psi concrete (hard sandstone).
How strong is an M8 bolt?
From the table at right, for a strength class of 10.9 and a maximum allowable load of 200 kgf, the suitable bolt is a 318［kgf］M8.
How deep should a lag bolt go?
It very much depends on what you are attaching to what. As a rough guide that I use for most things with wood screws is that the total screw length should be at least double the thickness of what you are attaching, with a minimum of 4-6 times the screw diameter going into the material.
Do they make Grade 8 carriage bolts?
Carriage bolts, Grade 8 steel plain finish.
Do carriage bolts have shear strength?
Yes. All carriage bolts have certain amount of both tensile and shear strength, depending on the grade and material of the fastener. Stainless steel carriage bolts usually have a shear strength of around 90,000psi.
Are stainless steel bolts stronger than zinc plated?
Though some Zinc alloys can be very strong, overall stainless steel is stronger. However, zinc is a heavy element, and when alloyed with other metals it provides better corrosion resistance, stability, dimensional strength and impact strength.
What is the strongest stainless steel bolt?
BUMAX® Ultra – the world’s strongest bolt Since its launch in 2014, the BUMAX® Ultra range has proven that it is capable of exceeding tensile strengths of between 1 500 to 1 700 MPa on various applications, with good corrosion resistance and an operating range of between -50 and 400°C.
