Aerospace Fasteners Inc. is a leading distributor of aircraft fastening hardware for commercial and military aerospace applications. We offer a wide variety of high-quality aircraft hardware and parts, that feature everything from bolts to rivets to every small piece in-between.

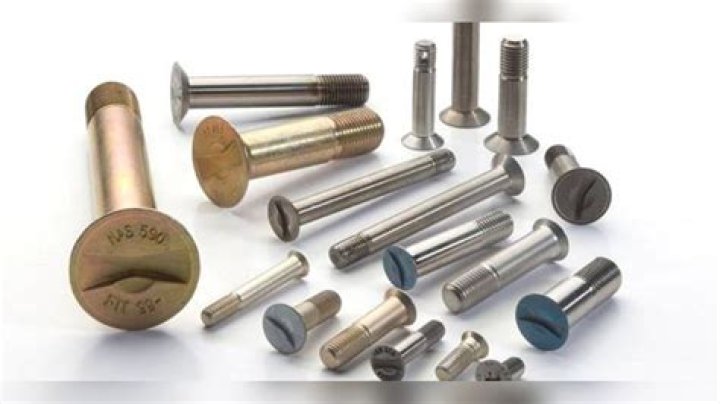

What are aircraft fasteners?
In the world of aircraft construction and repair, aircraft fasteners are utilized to assemble detail parts that are combined together with other parts into assemblies, which are assembled into installations that finally end up as a complete aircraft.
Where are special fasteners used on aircraft?
Hi-Tigue special fasteners. Turnlock fasteners are used to secure inspection plates, doors, and other removable panels on aircraft. Turnlock fasteners are also referred to by such terms as quick opening, quick action, and stressed panel fasteners.
What is the importance of fasteners in aircraft?
Various types of fastening devices allow quick dismantling or replacement of aircraft parts that must be taken apart and put back together at frequent intervals. Riveting or welding these parts each time they are serviced would soon weaken or ruin the joint.
What is the most common fastener used on an all metal aircraft?
Screws are the most commonly used threaded fastening devices on aircraft. They differ from bolts inasmuch as they are generally made of lower strength materials. They can be installed with a loose fitting thread, and the head shapes are made to engage a screwdriver or wrench.
How many fasteners does a Boeing 747 have?
A modern Boeing 747 uses over 6 million individual parts in its construction. Of those parts, approximately 3 million are fasteners. Many of the fasteners found in 747s and other aircrafts are clip nuts. The clip nut was invented in the 1950s, at the advent of commercial aviation.
How many types of fasteners are there?
There are three main types of threaded fastener; Bolts, Screws and Studs. Bolts have a head on one end (this is usually a hex head) and are threaded on the other. They are generally used in conjunction with a nut (and sometimes a washer) to hold them in place.
What is a blind fastener?
The blind fastener is placed in a pre-drilled hole and is installed by using an installation tool to pull the mandrel or pin head into the rivet body, expanding the rivet body and causing it to flare on the blind side of the joint material creating a permanent and vibration resistant fastening.
Why are blind fasteners used in aircrafts?
In airplanes, blind rivets are used to secure multiple parts together. They are often found on the trailing edges of airplanes where there’s little or no access to the back side. Even if the back side of an airplane’s trialing edges can’t be easily accessed, blind rivets can be used to secure them together.
How many screws are in an airplane?
Nearly one million fasteners, including internally and externally threaded, are used in each plane, bringing the total number of fasteners used in 777 production to approximately 1 billion.
Article first time published on
What are special fasteners?
Special fasteners are a bolt used under industrial circumstances to hold pieces heavy weight industrial components together under extreme pressure. These screws are made out of materials highly resistant to corrosion. This is necessary because of the type of equipment they are expected to hold together.
What is Taper Lok fastener?
TAPERLOKS are the strongest special fasteners used in aircraft construction. The TAPERLOK exerts a force on the walls of the hole because of its tapered shape. Fasteners.
Why are special fasteners used over solid shank rivets?
Although the shear loads of riveted joints are very good, the tension, or clamp-up, loads are less than ideal. Special purpose fasteners are sometimes lighter than solid shank rivets, yet strong enough for their intended use. … Typically, the locking characteristics of a blind rivet are not as good as a driven rivet.
What is a Airloc fastener?
AIRLOC™ is a highly compact quarter-turn panel fastening system designed for quick operation by hand or with simple hand tools.
What does an stand for in aviation hardware?
AN means the bolt is manufactured according to Air Force-Navy specs. 4 identifies the diameter of the bolt shank in 1/16″ increments. 4 identifies the length of the shank in 1/8″ increments. A means the shank of the bolt is undrilled (no letter here means a drilled shank)
Why rivets are used in aircraft?
For the critical components of an aircraft’s body, though, rivets are preferred because of their ability to withstand extreme stress without breaking or otherwise succumbing to damage. It’s a safer and more effective way for aerospace manufacturing companies to build aircraft.
What are 4 types of fasteners?
- Screws. For many people, when they think of fasteners, screws are the first thing to come to mind. …
- Nails. Nails have been used since ancient times, and they are still an everyday household item. …
- Bolts, Nuts and Washers. Nuts and bolts are another common type of fastener. …
- Anchors. …
- Rivets.
What are the different methods of fastening?
- Integral fasteners.
- Threaded fasteners.
- Non-threaded fasteners.
- Stapling.
Is washer a fastener?
washer, machine component that is used in conjunction with a screw fastener such as a bolt and nut and that usually serves either to keep the screw from loosening or to distribute the load from the nut or bolt head over a larger area. For load distribution, thin flat rings of soft steel are usual.
How many rivets are in a 737?
It’s tough work for pairs of humans who install each of the 60,000 rivets that keep Boeing’s 777 from falling apart in midair, so they’re getting some help from pairs of robots on the plane production line. in an airplane is exhausting, try building one.
How long does it take to make a 747?
Building an airplane is a complex, if not monumental, undertaking. There are 6 million parts on one 747, for example – 40,000 rivets on each wing. Over the 43 days it takes to build a jumbo jet, workers here fill in a bar chart each time one of 14,000 individual jobs is completed.
What are the purpose of different kinds of aircraft washers?
To lock a bolt into place: There are many different types of washers, including split ring, internal tooth, external tooth, as well as locking washers that help to keep a bolt securely held against a surface. Essentially, the washer provides a grip against the two metals.
How do I get rid of special fasteners?
Creating a Grip An easy way to remove a one way screw is to create a strong grip on the head of the screw. This can be done by using locking pliers around the screw. Once you have a firm grip, simply turn the pliers to remove the screw.
What are cherry rivets?
CherryMAX® is a locked spindle blind rivet with a visibly inspectable mechanical locking device and its own installation washer, which eliminates the problems resulting from worn tool anvils. … The CherryMAX® rivet is the most reliable, high strength structural fastener with visual inspectability in the world today.
Which type of rivet is used in aircraft industry?
The universal head rivet and the 100 degree countersunk head rivet (MS20426) are the most widely used within our industry. See Figure 3. These MS numbers are also interchangeable with AN numbers AN470—MS20470 and AN426—MS20426. Additionally, two types of material are available within these designations.
What is a Huck rivet?
Huck® structural blind rivets are ideal for situations where access to the connecting materials is only possible from one side. Structural blind rivets are up to the highest demands due to their enormous shear strength and high tensile strength. Huck® blind rivet solutions include: Magna-Lok.
What is solid rivet?
Solid rivets are one-piece fasteners consisting of a smooth cylindrical shaft with a head on one end, which are installed by mechanically upsetting on the shaft tail side. Solid rivets can have flush or protruding heads. These two types of solid rivets are extensively used in aircraft structures [1].
What are tubular rivets?
Semi-tubular rivets (also known as tubular rivets) are essentially the same as solid rivets, but with a shallow hole at the tip, opposite the head. This hole causes the tubular portion of the rivet (around the hole) to roll outward when force is applied.
How do you identify aircraft bolts?
AN-type aircraft bolts can be identified by the code markings on the bolt heads. The markings generally denote the bolt manufacturer, the material of which the bolt is made, and whether the bolt is a standard AN-type or a special purpose bolt.
Which of these fasteners can be used for joining aircraft components?
Aluminum rivets are often used to join aluminum components in an aircraft.
Do planes have screws?
Planes don’t need to be in perfect condition in order to safely get you to your destination. Ideally there would be no screws missing but there’s a threshold of acceptable missing screws on the plane, according to Air Crew Life. So don’t worry next time you see something loose on the plane.
