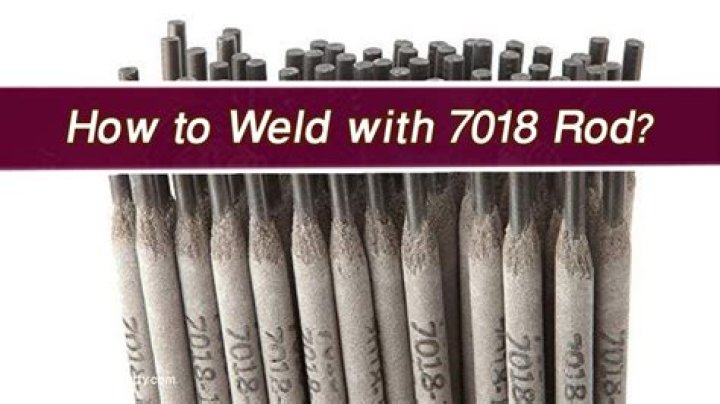

Designed for welding low, medium and high carbon steels and higher strength low alloy steel, this rod will give you good control over the arc and minimize the post-weld mess. The E7018 rod is capable of producing strong and aesthetically pleasing welds time after time.
What is the type of current used if the electrode is 7018?
The 7018 Welding Rod The 70 means it makes welds that are very strong (70,000 psi). The 18 means two things: The “1” means the electrode can be used in any position, and the “18” means low hydrogen and usually DC current.
What's the difference between 6011 and 7018 welding rod?
Metal Web News claims that 6011 welding rods are capable of producing welds that feature a 60,000 psi minimal tensile strength. The 7018 welding rods produce stronger welds that feature minimal tensile strengths of 70,000 psi.
What is unique about 7018 electrode?
Atom Arc 7018 produces a deep penetrating arc, with excellent control and minimal cleanup. These low-hydrogen, moisture-resistant electrodes are known for their superior welding performance, tough mechanical properties, crack resistance, high operator appeal, and consistent quality.
What is meant by E7018 1 electrode?
Alloy Type: A5.1, CARBON STEEL Covered Arc Welding Electrodes. E7018 is a low-hydrogen iron powder type electrode that produces high quality x-ray welds. It can be used in all positions on AC or DC reverse polarity welding current.
What is the role of electrode coating in SMAW?
The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.
Is 7018 welding rod AC or DC?
The 7018 welding rods are used for pipe welding and structural steel welding and repair welding. This low-hydrogen, usually DC, all-position electrode can also be used with AC, which not many welders may know. The 7018 provides a good bead appearance and smooth, strong welds. It also works on higher strength steels.
Why is 6010 so hard?
These rods do not contain potassium in their flux covering as E6011. Potassium helps to stabilize the arc. Furthermore, for most welding requiring E6010 rods, you use whip and pause techniques that add extra stress to the welder. As a result, E6010 rods create an arc that is very hard to stabilize.
Which welding process uses coated electrodes?
Shielded metal arc welding (SMAW), also known as manual metal arc (MMA) welding or informally as stick welding, is a manual arc welding process that uses a consumable electrode coated in flux to lay the weld.
What is the best welding rod for cast iron?
Nickel alloy electrodes are the most popular for cast iron welding. According to New Hampshire Materials Laboratory Inc., nickel-iron weld is stronger with a lower coefficient of thermal expansion, reducing welding stresses and improving resistance to cracking.
Article first time published on
What does the 8 stand for in 7018?
8 – the ‘8’ indicates that the rod has low hydrogen potassium with iron powder coating and that it can be used with all polarities (DC+, DC-, or AC). The final number, ‘8’ in the case of our E7018 rod, requires more explanation.
Can you use 7018 on stainless?
Can you weld stainless to mild steel with a 7018 rod? You will have poor or even dangerous results if you weld stainless to mild steel with typical welding rods such as the E7018. The bead will have no corrosion resistance with low strength, ductility, and heat resistance.
What is the best welding rod for rusty metal?
If you’re dealing with rusty metal, it’s recommended that you use a welding rod that’s rich in silicon or manganese, as they create thicker slag that takes the contaminants to the surface. A commonly used electrode with these properties is the 7018.
What is the best welding rod for stainless steel?
A 309 or 312 SMAW electrode is a good choice for stick welding stainless steel, especially for maintenance or repair applications. It offers high cracking resistance and good strength, and typically can join stainless steel already in service, even if the specific material grade isn’t known.
What does e7016 mean?
1 means the capability of all positional welding and the last digit 8 mean that this electrode coating material is low hydrogen with iron powder & 6 means this electrode is only low hydrogen with potassium. Thanks.
Is E7018 a low hydrogen electrode?
The AWS E7018 electrode is the most popular low-hydrogen covered electrode type in use today. It features certain characteristics that separate it from other classes. This class of covered electrode is an ideal choice for all-position welding, with the exception of downhill welds.
What does the 3 stand for in E6013?
In this case the “3” in E6013 tells that it has a rutile potassium based flux coating. The penetration of the electrode is light and it can be used with AC and DC currents. Please refer the table below for other key numbers and their properties.
Is 7018 a drag rod?
The 7018 is the backbone of structural welding. This rod runs completely different from the 6010 and 6011 rods—it is much smoother and easier. More of a “drag” rod, the 7018 is also referred to as a low-hydrogen, or “low-high,” rod in the field. … A 7018 rod literally should be dragged across the metal when welding.
Is it better to weld up or down?
It’s always better to run the weld “up” because if everything is right, you’re assured better penetration regardless of the process being used. When running SMAW or FCAW, the welds should always be run “up” to eliminate the possibility of slag inclusions.
What setting should my 7018 ROD be on?
the arc force bumps up the amperage just a bit so that you keep welding. Most operator manuals recommend setting the arc force knob to around 30 or so for 7018 rods.
What is polarity welding?
What is polarity in welding? The electrical circuit that is created when you turn on the welder has a negative and a positive pole – this property is called polarity. Polarity matters greatly in welding because choosing the right polarity affects the strength and quality of the weld.
What is AC in welding?
What is AC Welding? An alternating current is an electric current that reverses its direction many times per second. A 60-hertz current will change its polarity 120 times per second. With AC welding, because the magnetic field and current rapidly reverse -direction, there is no net deflection of the arc.
What is ideal to be used for vertical welding?
When selecting an electrode for welding vertically-up, we recommend that you opt for one that has low iron powder content. Iron powder takes more time to cool down. An electrode with less iron powder will set quicker and will not drip or produce slag. You can opt for either AWS 6010 or AWS 7018.
What is electrode coating why it is used?
The purpose of the electrode coatings is to produce a gas shield around the arc which in turn prevents contamination from oxygen and nitrogen at the weld metal zone. The oxygen has a capability to combine with molten metal, removing alloys and in turn causing porosity.
What are electrode covering and why are they provided?
A composite filler metal electrode. The gases produced as the covering decomposes from heat of the arc serve to shield the molten metal from the atmosphere and provide arc stability. … The covering also produces slag to protect and shape the weld pool.
What is coated electrode?
[′kōd·əd i′lek‚trōd] (metallurgy) A wire covered with metal oxides and silicates and used as a filler-metal electrode in arc welding. Also known as covered electrode.
What are the two 2 types of welding electrodes?
- Consumable Electrodes.
- Non-Consumable Electrodes.
What is MMAW used for?
The MMAW process is used for welding virtually all steel types and many nonferrous alloys, but it is primarily used to join steels which include low carbon or mild steels, low-alloy steels, high-strength steels, quenched and tempered steels, high-alloy steels, stainless steels, and many of the cast irons.
What is electrode holder welding?
Electrode holder is the insulated handle that clamps onto the electrode. The welder holds this device during welding to control the arc.
What is E6010 welding rod used for?
E6010 is used for deep penetration welding, while E 7018 is used for welding metal that tends to crack, producing quality welds with excellent toughness and high ductility. Usually, both electrodes are used together in various industrial applications (pipelines welding, storage tanks, etc.).
What are 6011 rods used for?
The 6011 welding rod is useful for jobs that require deep penetration, no matter the position or welder setup. It is a solid all-around welding rod. Because it is an iron rod, it is useful for most kinds of iron and mild steel. You can handle just about anything with 6011 rods.
