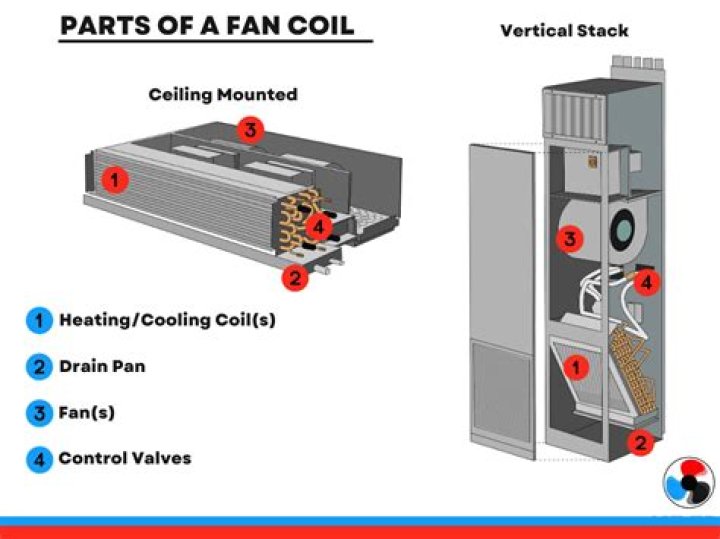

A fan coil unit (FCU) is a device that uses a coil and a fan to heat or cool a room without connecting to ductwork. Indoor air moves over the coil, which heats or cools the air before pushing it back out into the room.
Do fan coil units provide fresh air?
It will depend on how the system has been designed and configured, but generally, yes fan coil unit can be installed to provide fresh air. The fresh air can be supplied in 2 ways: Directly 100% Full Fresh Air.
Does a fan coil unit heat and cool?
A fan coil unit (FCU), in its most basic terms, is a device that uses a coil and a fan to either heat or cool a room. … Fan coil systems can be for heating, cooling, or both, and requires no additional ductwork. Due to their simplicity, FCUs are more economical to install than ducted air management units.
What is the difference between a fan coil unit and an air handling unit?
Fan Coil Unit (FCU) One major difference between FCUs and AHUs is that AHUs can bring in outside air and heat or cool it (i.e., conditioning). However, FCUs can only condition the air that’s already present in the area by pulling it in and moving back out through its heating or cooling coil.
How much does a fan coil unit cost?
Fan coil units range from $300 to $3,500, depending on the size and type. The term is often used interchangeably with air handlers, but fan coil units are not always the same thing. The least-expensive models run $300 to $800.
Do fan coil units have filters?
To reduce maintenance costs and to improve indoor air quality, most fan coil units are equipped with an air filter that is easily removed. While performing regular fan coil maintenance we see that the best units have great access to the drain pan and fan/motor assembly. The air filter is usually quite easy to replace.
How long do fan coils last?
A fan coil unit can last up to 10 or 15 years with regular maintenance, but there are several indications that it’s time to replace it.
Is a fan coil unit a split system?
A split system is an HVAC system that has both indoor and outdoor units that are connected with copper tubing. There are many different types of split systems, which can include either a heat pump or air conditioner installed outside your home, paired with either a gas furnace or a fan coil located inside your home.
Is a fan coil an air handler?
An air handler, also known as a “fan coil unit,” is basically a box shaped like a furnace. It has a blower in it, either a variable-speed or an ECM blower.
Are fan coil units good?
FCUs are generally considered a lower grade solution for office air-conditioning due to fan noise. They can deliver good control when well maintained but the small zone size and high component count often leads to occupant discomfort.
Article first time published on
Do fan coils use water?
Fan coils heat or cool by using hot water from a central heating plant and chilled water from a central chiller plant. … Temperature control is achieved by modulating control valves for the hot and chilled water. There is typically one or two fan coils per housing unit.
How does a fan coil unit differ from a convector?
Convector = a tube with metal fins within a cabinet, not unlike a baseboard heater, which transfers heat from hot water or steam to the air of the room. … Fan coil units can be heat only (two pipe) or heating and cooling (four pipe). They may or many not also bring in outside air.
Why is my air handler leaking?
It can be several things such as a clogged condensate drain line, the drain pan is damaged or rusted, the condensate pump is broken, the air filter is not clean, or the refrigerant is low.
Can I replace just the air handler?
Replacing just the air handler might appear cheaper right now, but over time, it will cost more in repairs, time, and high utility bills because it is inefficient.
How much does it cost to replace a coil on an air conditioner?
Residential AC Evaporator Coil Replacement Cost Replacing a home air conditioner’s evaporator coil costs $1,000 on average with a typical range of $600 to $2,000. About 40% of the bill comes from labor, or $400 to $1,000.
Do fan coil units have ducts?
Fan coil units are used to condition the local air to suit the temperature requirements of the immediate space. As illustrated in the above image. There are two main ducts (supply and return) which will go around the building to supply the various rooms.
How do you clean a fan coil unit?
- Turn the fan coil unit off and wait until it has cooled down.
- Remove the panel.
- Use a brush head on a vacuum cleaner to remove dust.
- Use a dry cloth to clean the casing.
- Replace the panel when finished cleaning the coils.
Does a fan coil unit have a condenser?
Fan coils and evaporator coils are often confused because they both remove heat from inside a building. … A fan coil (also known as a condenser coil) is responsible for several jobs, particularly in a home with a heat pump.
How often should a fan coil unit be serviced?
Professional fan coil unit servicing Replacing the air filters is a straightforward task, and should be done every three months as a minimum. Some homeowners change the air filter monthly depending on their circumstances.
What makes AC coils go bad?
Corrosion of the copper tubing in the coil from the outside in is the most common cause of evaporator coil leaks. This corrosion happens when formic acid accumulates on the coil as a result of the interaction of water, copper and volatile organic compounds (VOCs) in your indoor air.
Is it worth replacing evaporator coil?
Your AC is 8+ years (or older) The efficiency of an AC unit is at its best for the first 10 to 12 years of its life. That said, if your AC is nearing 8 years old, replacing just the evaporator coil would be like putting a brand new engine into a dying car—it’s just not worth the money.
What is CFM in fan coil unit?
Fan Coil Unit. Capacity. 400 cfm – 2400 cfm. Material. Stainless Steel.
What is FCU maintenance?
FCU Quarterly Maintenance Procedure Open the cover of the FCU to access the blower and motor assembly. Check the condition of the blower for possible dirt or damage. Clean or replace if found any. Inspect and check the motor for possible noise. This can be done by turning the shaft of the motor freely.
Is a fan coil electric?
A fan coil is an indoor unit of a heating and cooling system. … With an optional electric heat strip, a fan coil can also provide heat to your home if you live in milder climates.
Can Ahu work without chiller?
AHU’s typically do not have their own cooling system built in, instead they will be connected to a central plant water or air cooled chiller, occasionally they will use some sort of split a/c unit and you can also find these connected to district cooling networks.
Is a fan coil a furnace?
The fan coil is like a forced air furnace except that the heat source is a boiler, or in some cases a hot water heater certified for DHW and space heating. The hot water is pumped through a heating coil in the fan coil unit and then the heat is transferred to the air through ductwork.
Which is better a split system or a package unit system?
A split system is more energy-efficient than a package unit. Because homeowners prioritize high energy-efficiency, installing a split system can increase the resale value of your home. On the other hand, a package unit has an average energy-efficiency.
Is a fan coil a heat pump?
With a heat pump system, a fan coil (air handler) is located inside the home and includes the fan and the heating/cooling coil. We have several options available including variable and multi-speed features that can deliver improved indoor comfort and reduced system noise.
Are fan coils efficient?
When manufactured with high efficiency EC fan motors, fan coils offer comparatively low energy consumption. Claims suggest EC FCUs use up to 70% less energy than traditional products and that a specific fan power (SPF) of 0.3W/l/s or lower can be achieved (compared to an SPF of 0.7W/l/s for an AC FCU).
Where should air vent be located in a hot water heating system?
Where should air vents be located in a hot water heating system? Air vents need to be placed at high points of the system and on terminal units.
How do convector units work?
The convectors in your unit have a radiator fan coil system inside. At the bottom of the convector are two fans which draw the air over the radiator coils and out the top of the convector into your unit. When adjusting the thermostat, you only control the fans, not the flow of water.
