The pick up coil is designed to generate a voltage pulse that is used by the ignition module as an RPM and timing sensor. The pick up coil is used in conjunction with the ignition module to provide switching of the ignition coil at the correct time and for the correct duration.
How do you test a distributor pickup coil?
On distributors with the pickup separate from the module assembly, you can check the pickup using your Ohm meter. Connect the leads from your Ohm meter to the 2 leads of the pickup. If you show a resistance of 50 to 200 Ohms, the pickup is functioning correctly.
How do you diagnose a bad pickup coil?
- No Engine Spark. The pickup coil sends the signal from the ignition module to the spark plugs during the ignition process. …
- Rough Idle. Because the spark plugs are not communicating proper timing to the fuel injectors, a rough idle may occur. …
- Engine Stall/Failure to Accelerate.
What are the symptoms of a weak ignition coil?
- Illuminated Check Engine Light. With most modern vehicles, a faulty ignition coil is enough to turn on the Check Engine Light. …
- Misfiring Engine. If an ignition coil is not working properly, your engine will likely misfire. …
- Hard Starts. …
- Worsening Gas Mileage. …
- Diminished Power. …
- Sudden Backfires.
Why is a pickup coil called a pickup coil?
A coil of wire doesn’t respond to a magnet field but rather to a change in magnetic flux through its ends. Such a coil is commonly called a pickup coil or a search coil.
What are the symptoms of a bad ignition control module?
- Acceleration Issues. The vehicle may shake, vibrate or jerk when the gas pedal is pressed. There may be hesitation or lack of power during increases in speed.
- Temperature Problems. A faulty ignition module can cause a vehicle to overheat. …
- No Power. The engine may turn over without starting.
How much resistance should a pickup coil have?
The proper pick up coil resistance for either coil should be in range from 350 to 700Ω.
What a bad ignition coil looks like?
Once the engine is cranked, you should look for blue sparks along the spark plug gap. If you can see blue sparks, this proves your ignition coil is working correctly. If you don’t see blue sparks or you see orange sparks, this is a sign that there’s a problem with your ignition coil.
How many ohms should a pickup coil read?
For the pick up coil (magnetic pick up assembly), connect your ohmmeter between the orange and purple wires. Resistance should be 400-800 ohms. Next, connect the ohmmeter between the black wire and a good ground on the engine.
Can a bad coil pack cause knocking?
Coil packs have absolutely no moving parts inside them. The only noise they can make is a (usually faint) ticking noise, if the arc is shorting through air straight to ground.
Article first time published on
What is pulser coil?
The Pulser Coil is an important component in an engine’s timing & ignition system. The Pulser Coil, (often called Pickup Coil, or Timing Coil) is responsible for providing the timing signal to the ignition control box on modern motorcycles with solid-state ignition systems.
What causes an ignition coil to overheat?
Damaged or worn spark plugs As spark plugs wear down, the gap in which each spark plug is fired is widened, meaning the coil needs to provide a higher voltage in order to bridge the gap. This additional strain on the ignition coil may cause voltage overload, leading to overheating and eventually failure.
What sensor on a car is a magnetic pickup coil?
A pickup coil, which consists of a Hall effect sensor, is housed within the metal rotor mounted on top of a vehicle’s distributor shaft. As the rotor spins, little windows pass in front of this sensor. When a window passes, it exposes a magnet which triggers a signal to the car’s ignition system.
What is inside a pickup coil?

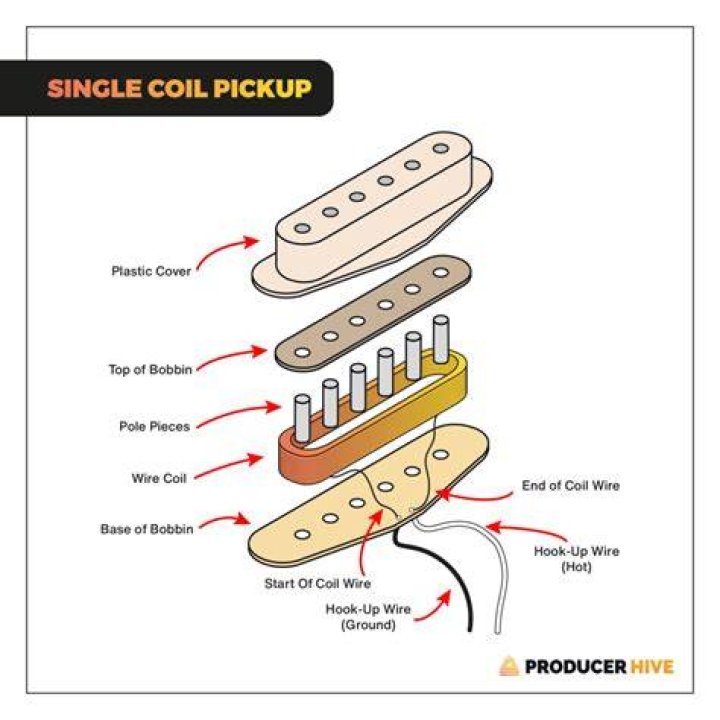

Inside a pickup is a magnet and coil An electric guitar pickup consists of a black bobbin with six magnetic bars inserted, and a material such as enameled wire wound around the magnets. Six magnets are used to better pick up the sound from the six stings. Some pickups use metal rods instead of magnets.
What is an ESC module?
The electronic spark control module (ESC) is one of many components in your ignition system. Working alongside your distributor and ignition control module, the electronic spark control module varies ignition depending on many things like engine load. It signals the distributor to advance or retard timing.
What happens when engine control module goes bad?
When the ECM is faulty or failing, it will throw off the timing of fuel settings of the engine. You may notice unexplained drops in fuel efficiency, or you may feel your vehicle struggling to shift. Any sudden change in your vehicle’s performance is reason enough to seek out the source of the problem.
How can I tell if my ignition module is bad?
Connect the ground lead from the 12-volt test light to the negative terminal on the ignition coil. Have your partner crank the engine over several times. Your test light should flicker on and off. If so, your module is working properly and no further testing is necessary.
How does a magnetic pickup distributor work?
The magnetic pickup is actually a wire that is wound around a magnet to create a magnetic field. Whenever this field changes, due to another metal object coming into the field, a voltage is generated. MSD uses this voltage as a trigger sig- nal for the ignition control.
Can I just replace one ignition coil?
You can, of course, change just one coil. However, as a mechanic, I’ve seen it so many times, when one coil fails, another isn’t too far behind. If your coils are easy to access, replacing them as they fail is OK, apart from the inconvenience. It is possible to drive a car with a faulty coil, but it isn’t advised.
Will a bad coil pack throw a code?
a faulty ignition coil can cause several problems for your engine: 1. check engine light comes on: the car’s computer oversees coil pack operation. if it detects a problem with an ignition coil, it will turn on the check engine light and log any related trouble codes.
Does a bad coil make noise?
It is usual for the engine to make some noise. However, loud engine noise accompanied by vibrations could indicate a faulty ignition coil that doesn’t generate enough voltage, thus overworking the engine.
What would make a motor knock?
Knocking occurs when fuel burns unevenly in your engine’s cylinders. When cylinders have the correct balance of air and fuel, fuel will burn in small, regulated pockets instead of all at once. … Engine knocking happens when fuel burns unevenly and those shocks go off at the wrong time.
Can a bad coil pack cause white smoke?
Changing spark plugs is a good place to start but keep in mind it could also be a coil-pack or poor compression. White smoke can also be caused by coolant or oil in the cylinder but those have different smells; coolant smells sweet and oil smells like oil.
What is a trigger coil?
Trigger coil Transformers are used to provide a single, high-voltage pulse (in the order of several Kilo-Volts) to the flash tube’s envelope. … Being High-voltage Pulsed transformers, they are used many times for CDI systems, Gas stove ignition, Electrical stimulation etc.
What is CDI motorcycle?
Essentially, a CDI box controls a motorcycle’s ignition system by starting the ignition and combustion process. A pulse of voltage from the motorcycle battery passes through the CDI box to fire up the spark plug.
What causes a coil not to fire?
There are a few reasons for no spark, new coil pack could be defective, crank sensor, ignition module or bad wire in primary circuit, faulty ECM/PCM. You may have to have a good technician have a look, diagnose and estimate repair. Second link gives detailed instructions for testing and diagnosing coil pack.
What can cause ignition coil failure?
Coils fail for a variety of reasons including heat, vibration, or issues on the secondary side of the ignition system. … Worn secondary ignition components such as spark plugs or wires can cause a coil work harder, require more voltage, and therefore significantly reduce the operating life of the coil.
Why do coil packs go bad?
What Causes Multiple Ignition Coils To Fail? In case of repeated coil failures, it may be that the coils are functioning too hard than necessary. It can happen because of high secondary resistance. This increased resistance is usually caused by a damaged or worn-out spark plug or too much gap between the plugs.
