The abbreviation of PT is Pipe Thread, 55 degrees sealed tapered Pipe Thread, belongs to the family of wyeth Thread,it main used in Europe and the commonwealth countries. More commonly used in water and gas Pipe industry, the taper regulations is 1:16. The national standards for GB/T7306.
Is PT thread the same as BSP?
With NPT, the peaks and valleys of the threads are flat. … In BSP, they are rounded. Secondly, the NPT angle of the thread is 60 degrees and the BSP angle is 55 degrees.
Is PT thread the same as NPT?
NPT is an abbreviation of the National (American) Pipe Taper Thread, which is an American standard 60 ° tapered Pipe Thread used in North America. Pipe Thread, abbreviated as PT, is a Wyeth 55 ° sealed conical pipe thread used in Europe and commonwealth countries.
Does MPT fit NPT?
MPT Male Pipe Thread (interchangeable with NPT) National pipe thread connection to an FPT (Female Pipe Thread) or equivalently an FIP (Female Iron Pipe). MPT the threads are located on the outside of the pipe or fitting.
How do I identify pipe threads?
Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.
Is SAE thread the same as UNF?
There are two general types of SAE bolts (sometimes referred to as machine screws). UNF (fine thread pitch) has more threads per inch than the same diameter bolt in the UNC (coarse thread pitch). Nut dimensions are maximums per SAE.

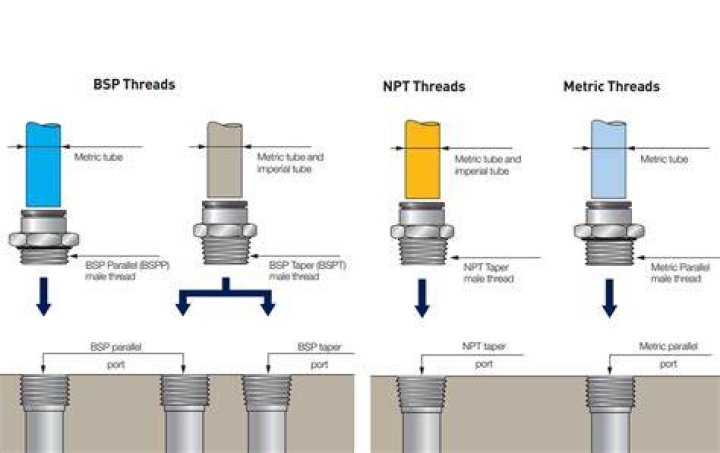

What are the different pipe threads?
- UN/UNF.
- NPT/NPTF.
- BSPP (BSP, parallel)
- BSPT (BSP, tapered)
- metric parallel.
- metric tapered.
What does flare mean in plumbing?
Flaring allows you to connect tubes to each other or another kind of fitting. Flared ends tend to have an approximately conical shape. The most popular flaring tool for copper tubing is the bar-type tool, which include multiple bits to accommodate different pipe or tube sizes.
What is UNF and UNC thread?
The Unified Thread Series is classified into coarse threads, fine threads and extra fine threads much like Metric screw threads are. UNC: Is the symbol for Unified coarse pitch threads. UNF: Is the symbol for Unified fine pitch threads. UNEF: Is the symbol for United extra fine pitch threads.
What does FHT mean in plumbing?
FHT = Female Hose Thread. MPT= Male Pipe Thread. FPT = Female Pipe Thread. As we mentioned earlier, hose thread sizes are usually all ¾” so you may not always see this number after the MHT or FHT designations.
Article first time published on
Is MPT same as MNPT?
Definition of Pipe Thread AcronymsMPTMale Pipe Thread (interchangeable with NPT)MIPMaleIron Pipe (interchangeable with NPT)
What does NPT stand for in plumbing?
The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT.
Are NPT and IPS the same thread size?
National Pipe Tapered (NPT) and Iron Pipe Straight (IPS) are two commonly used thread standards in plumbing. … NPT and IPS nominal sizes are always the same.
Which thread is recommended for pipe and pipe fittings?
NPTAmerican Standard Pipe Taper ThreadNPSCAmerican Standard Straight Coupling Pipe ThreadNPTRAmerican Standard Taper Railing Pipe Thread
Is NPT the same as UNF?
UNF is Unified Fine thread, the successor to the obsolete National Fine (NF) thread. NPT National pipe thread is used (in the U.S.) for plumbing of water and gas pipes, and threaded electrical conduit. NPT is defined by ANSI/ASME standard B1.
What are UNF threads?
UNF threads are Unified fine pitch threads, while UNC threads are Unified coarse pitch threads. UNF and UNC thread screws are both used for fastening, but mainly applied in different fields. coarse thread has higher strength and find thread is better for sealing.
Are NPT and UNF threads compatible?
You will need a caliper, pitch gauge, and size charts to complete this process. Threads are divided into four primary main types: NPT, G/BSP, PT, metric or UN/UNF. Most North American hydraulic and pneumatic components are compatible with National Pipe Threads (NPT), or Unified Threads (UN/UNF).
What is the use of BSW thread?
It was used on general brass work, gas fittings and brass tubing. It is also reported that antenna bases should use this thread. The specific dimensions for the thread can be derived by treating it as a special Whitworth thread.
Which is stronger UNC or UNF?
A 1/4 UNF thread is about 14% stronger than its UNC counterpart. … The metric coarse thread is actually between UN coarse and fine thread, and the metric fine thread is finer than the UNF threads.
Is UNC thread the same as Whitworth?
If you are struggling to find either a BSW thread (British Standard Whitworth) or a UNC thread (Unified National Coarse), it is useful to know that in almost all cases the two threads are interchangeable in practical terms.
Do you use Teflon tape on flare fittings?
Do not use Teflon ® tape or pipe sealant on any flare ends because you will not obtain a leak-free seal. Keep flare end of fitting free of grease, oil and thread sealant. Use a wrench only on the hex surfaces of the fittings.
Why are flare fittings used?
Flared fittings are also a good option for use with heavy machinery, and industrial and construction equipment. They are the fitting is most commonly used to connect tube or hose in high-pressure and high-temperature applications. The flare fitting is commonly used world-wide because it is a simple construction.
Can you over tighten a flare fitting?
Fourth, don’t over-tighten the flare fitting, as this can cause leaks. Daikin offers preset flare torque wrenches that will allow you to properly tighten the flare fitting without over-tightening them. Always use a backup wrench when tightening any flare fitting.
Is FHT same as ght?
Garden Hose Thread Garden Hose Threads (GHT: Male=MHT; Female=FHT) are coarser than standard pipe threads; even coarser are fire hose threads (NST), which quickly connect for obvious reasons.
What is the difference between NPT and MNPT?
NPT stands for National Pipe Thread and is an American standard thread. It may also be reffered to as MPT , MNPT or NPT (M) for male external threads and FPT, FNPT or NPT(F) for female interal threads. … Both threads have the same pitch, angle (60 degrees) and shape (flat peaks and valleys).
Are compression threads NPT?
The fittings we sell may have compression or National Pipe Thread tapered ends (NPT). Compression ends are made for a tube which has a specific outside diameter (OD). … NPT (ends) look very different than compression (ends). NPT has no nuts or ferrules, but instead relies entirely on a thread connection.
What does MPT stand for?
AcronymDefinitionMPTMaster of Physical Therapy (also seen as MSPT)MPTMaintenance and Protection of Traffic (construction industry)MPTMaputo (Mozambique capital)MPTMultistate Performance Test (National Conference of Bar Examiners)
What is MTP pipe?
Add to cart. We stock Model Taper Pipe Thread (MTP) taps & dies in various sizes. This thread system is a miniature version of American National Taper Pipe thread with the same taper of 3/4″ per foot and the same 60 degree thread form.
What is the difference between FIP and compression?
It’s hard to see the difference, but there is a difference. The taper of the threads is what actually distinguishes pipe from compression fittings. … FIP means Female Iron (or International) Pipe and can also be called FPT for Female Pipe Thread. To add confusion, there is NPT, which stands for National Pipe Thread.
What is the difference between line pipe and NPT?
Both NPT and NPS have the same thread angle, shape, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). … Straight Pipe Threads need a gasket or O-ring to create a seal. While NPT and NPS threads will engage, they do not seal properly with each other.
Why is NPT tapered?
The taper on NPT threads allows them to form a seal when torqued as the flanks of the threads compress against each other, as opposed to parallel/straight thread fittings or compression fittings in which the threads merely hold the pieces together and do not provide the seal.
