A built-up roof, most of the time referred to as BUR, is a time-tested roofing system typically comprised of hot tar and gravel. It is made up of many layers and typically the top layer is where the tar and gravel lie. … Of all the flat roof options available today, BUR has been around the longest.
What is a built up roof?

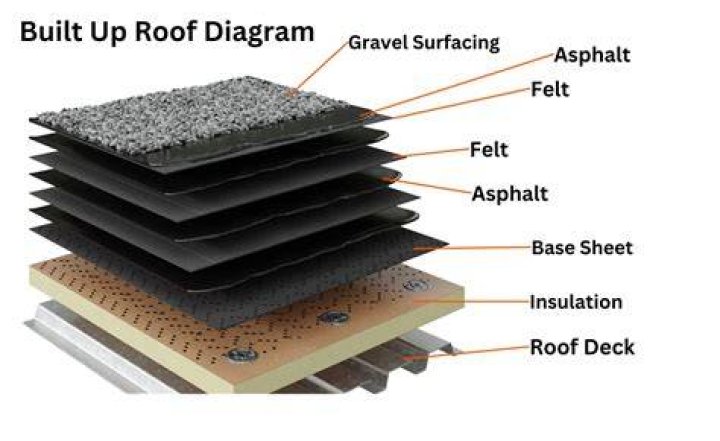

ARMA defines a built-up roofing system as a roof where multiple layers of asphalt alternated with ply sheets (felts) are applied over the roof deck (vapor retarder) and, most often over insulation that is attached to the roof decking.
How many layers does a built up roof have?
Built-up roofing systems are most commonly applied with three or four layers of roofing materials to make up the complete roofing system. These layers are typically a base sheet, a fiber sheet, and then either one or two layers of bitumen.
Is a built up roof a flat roof?
A built up roof system is a popular choice for buildings with low-slope or flat roofs. Often referred to by the acronym BUR, this system has been used for 100-plus years in the U.S.
Can a built up roof be repaired?
The following method of repair is only applicable to roof systems that are asphalt-based. If your roof assembly is a single-ply membrane, such as EPDM or TPO, the application of asphalt repair material to the surface of the membrane can damage the membrane and lead to a much larger patch or even full replacement.
Is built up roofing expensive?
For an average commercial roof, it will usually cost between $5.50 – $8.50 per square foot in materials and labor to install a typical built-up roofing system. This price range can change depending on the materials you choose.
Are built up roofs good?
Built-up roofs tend to provide excellent waterproofing and ultra-violet protection. Thanks to the aggregate top layer, they are also fire-resistant. Built-up roofing is generally low-maintenance and therefore costs little to maintain over its life.
Can you walk on EPDM?
Yes to an extent. EPDM is designed to take LIGHT foot traffic during installation and for occasional cleaning or maintenance. If you require more use than this, i.e. for a balcony then there are additional materials that can be laid over your EPDM for a more durable solution.
How is built up roofing installed?
First, contractors attach base sheets to the roof’s subsystem using roofing nails. Then, they use tar, concrete, adhesive, or asphalt to glue down felt over the top of the base sheeting. Next, roofers install a layer of gravel or cap sheets, which they then cover with a final layer of asphalt.
Is it cheaper to build a flat roof?
Lower Upfront Cost — A flat roof is less expensive to install on a new building than a pitched roof. This is because it requires fewer materials, and is structurally more simple. That means flat roofs can also be installed a bit more quickly, which is part of what makes them attractive for commercial buildings.
Article first time published on
How long do built up roofs last?
Built-Up Roof (BUR) The average lifespan of BUR is 20 to 30 years, depending on the climate and the particular materials that it’s made of. Still, there are specific constructions that can last up to 40 years.
Is a built up roof Class A?
Built-up Roofing When re-roofing a building that is located within a “FBZ”, “MFD”, or “VHFH” fire district, the portion of the roof covering which is re-roofed shall comply as an approved Class A roof covering.
How thick is built up roofing?
How thick is built-up roofing? A BUR roof system comes in multiple layers, most often between two and four. The thickness depends on the materials used and the number of built-up roofing layers applied, but typically the selvage area ranges between two to four inches.
How do you fix a built up roof?
- First: Base sheets are attached to the subsystem with roofing nails.
- Second: Adhesive, asphalt, concrete, or tar are applied over the base sheet and alternated to the desired thickness.
- Third: Then a final layer of built up roof with gravel is applied.
What is asphalt flat roof?
Commonly used for commercial roofing jobs, the asphalt is melted, poured and spread while hot. This is a hazardous job best left to professionals. Flat roof felts are bitumen impregnated sheets, which are applied in layers. They are available as either self-adhesive sheets or bonded together with hot or cold bitumen.
How do you fix a bubble in a flat roof?
The true fix to cracks or membrane ruptures is to apply a brand new coating to your flat roof. Before applying be sure to clean the roof of all debris and particles. The next step is to place a primer down that is compatible with your roof deck. Apply the coating and reinforce the coatings with fiberglass mesh strips.
What is a 3 ply built up roof?
A 3-Ply Hybrid BUR differs from other membrane options due to its combination of a 1ply base sheet with two plies of glass felt that enhances the performance of the membrane with a quicker installation time and less weight on the roofing system itself.
What is 4 ply built up roofing?
A 4-Ply roofing system involves roofing felts that are typically four plies composed of layers of reinforcement such as fiberglass or polyester felts, with each ply being embedded in a full bed of hot asphalt/bitumen.
How much does built up roofing weight?
The weight of a built-up roofing system can range from about 2.5 pounds per square foot for a smooth surface to 6.5 pounds per square foot for a gravel surface. Though not nearly as heavy as a slate roof or a clay tile roof, built-up roofing is generally heavier than asphalt shingles, TPO, PVC, and metal roofs.
What is the difference between built up roofing and single ply roofing?
Built-up systems are installed by alternating layers of asphalt or tar and supporting fabrics directly onto the roof. You can choose the number of layers (or plies) that are installed. … Single-Ply Membrane Roofing Systems have been the go-to roofing for commercial, industrial, and manufacturing facilities for decades.
Can you walk on a felt flat roof?
A flat roof is less precarious than a pitched one, but you still run the risk of damaging the felt and potentially going through the membrane. You’re less likely to cause damage on a warm day, and it’s generally advisable to lay boards across it to walk on.
What is built up roof made of?
A built-up roof is a type of “flat” or low-sloped roof made up of multiple layers of bitumen (asphalt or coal tar pitch) and reinforcing felts. Typical built-up roofs have three to five layers, called “plies”.
What is built up roof membrane?
Built-Up Roof Membranes (BUR) BURs, also commonly called Tar and Gravel Roofs, are made up of alternating layers of bitumen (asphalt or coal tar) and reinforcing fabric sheets. Each layer is a ply, and a roof has multiple plies depending on the climate and specific roofing details.
Why is it often difficult to identify flaws in the membrane of a built up roof?
Why is it often difficult to identify flaws in the membrane of a built-up roof? The gravel coating conceals the membrane. What is the purpose of the asphalt and the felts in a built-up roof system? The asphalt is the waterproofing material.
What is the difference between built up roofing and modified bitumen?
Modified Bitumen (MB) roofing is an asphalt-based, close cousin of the Built-up-Roof (BUR) designed for buildings with low-slope or “flat” roof structures. … Modified Bitumen roofs give designers and installers an even broader array of options than BUR.
What is the best type of flat roof?
EPDM Membranes Quite possibly the best flat roofing membrane, EPDM is a relatively low-cost flat roof material that offers a number of significant advantages. Clean, straightforward installation, incredible strength, a long lifespan, and a smart finish combine to make EPDM membranes a difficult one to beat.
How much does an EPDM roof cost?
For installation, the EPDM roofing cost per square foot will normally range between $3.25 and $14.75. The average price is about $4.50 and $5.50 per square foot. That being said, you can expect to pay between $6,000 and $18,000 for a full roof.
Are rubber roofs any good?
Rubber roofing is suitable for extreme conditions, giving you one of the most durable and reliable roofs available that typically lasts between 30-50 years. In time, you may find a felt flat roof can pick up moss and algae; the synthetic rubber doesn’t support the growth of moss so you are guaranteed a clear roof!
Is a flat roof a good idea?
Flat Roofs Are Durable: If durability is important to you, then a flat roof is just the system for you. A flat roof is water resistant, so you do not have to worry about water damage. … Easy To Clean: A flat roof is easier to reach than most systems, which makes the maintenance easy.
What is the life of a flat roof?
How many years does a flat roof last? Most traditional flat roofs are made from either mineral felt or asphalt and will have a maximum life span of between ten and 15 years. Unfortunately though they have a bad reputation due to their propensity to leak or become damaged through pooling water.
How long do flat roofs last?
A properly maintained flat roof can last for decades, depending on the materials. A built-up roof or layers of modified bitumen can last for up to 20 years. Lightweight thermoplastic polyolefin or spray-on coatings of polyurethane foam, acrylic or silicon have a similar lifespan.
