A true needle valve uses a tapered needle in a tapered seat, so as to provide fine control over flow rate. The float valve uses a pointed needle against a square-edged seat, to give a positive shut-off. As the float relies on gravity, the chamber must be mounted vertically.
What does a float needle do?
The carburetor float needle, moved by the float, controls fuel flow, maintaining the fuel level in the chamber. As suggested by its name, the “float” needs to float in the fuel, so it’s usually made of hollow plastic, metal or fuel-resistant foam — some were made of cork in the old days.
What is the purpose of needle valve in a carburetor?
Needle valves are usually used in flow-metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time, such as the idle fuel flow in a carburettor.
How can you tell if a floating needle is bad?
- Engine Won’t Idle. One of the signs that the carburetor float is sticking is when the engine will not idle. …
- Flooded Carburetor. …
- Engine Stalls or Hesitates. …
- Engine Misfiring.
How does float level affect performance?
Float level is too high If the float height is too high, this will cause the fuel to rise to a level above the operational spec. If the fuel height is a bit too high and the bike is running, the engine will display a rich running condition, which will make the throttle response slow and the engine note muffled.
Does a needle valve restrict flow?

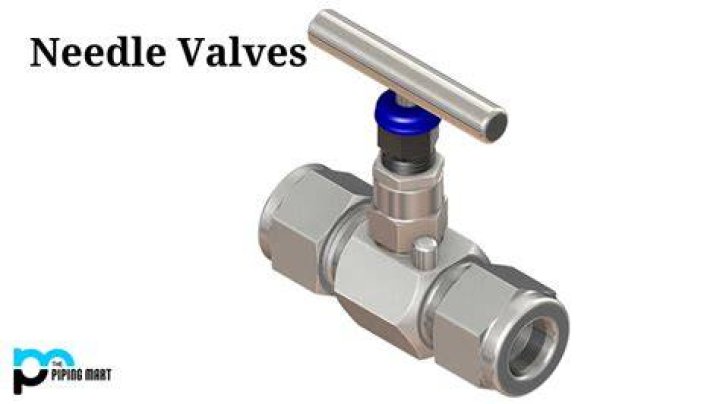

A needle valve is used to accurately control flow rates of clean gasses or fluids. The adjustments are gradual and smooth for controlling the flow rate, however, they can also be used as a reliable shut-off valve.
Why does gas pour out of my carburetor?
One of the more common questions we get concerns either the overwhelming smell of gas coming from the carburetor or fuel leaking out of the bowl or overflow. Both conditions are typically caused by a stuck or worn float needle valve. … Another common cause is the use of fuel containing any Ethanol.
Where is the float needle valve?
A float chamber is a device for automatically regulating the supply of a liquid to a system. It is most typically found in the carburettor of an internal combustion engine, where it automatically meters the fuel supply to the engine.
What is advantage of needle valve?
What are the advantages of the needle valve. The flow control at a low rate is very accurate. Needle valves are smaller in size. They can be used for throttling purpose. Flow rates can be adjusted accurately.
Why does my carb keep flooding?
The most common cause of flooding is dirt in the needle & seat. What happens often is you clean your carburetor, then start the engine. Dirt from a dirty gas tank, or in the fuel line rushes up and into the carburetor. … Note: Even with a fuel filter you can get dirt up to the carburetor.
Article first time published on
What happens when carburetor float is too high?
In an extreme case, if the floats are set too high, fuel will overflow via drillings inside the carb body. In addition, fuel may flow into the engine unrestricted, which, if the engine is not running, can cause hydraulic lock – that is, as the piston rises on the compression stroke it cannot compress the fuel.
Does float height affect jetting?
Float height controls the level at which fuel flow into the bowl is activated and deactivated. Set it too low and you can starve the bike for fuel, set it too high and you can have an overflow problem. I agree mostly. but float height does factor into carb jetting.
How do you tell if a carburetor is rich or lean?
This method involves looking at the base of the spark plug insulator (white part of the plug) for a slight coloring on the insulator just above where the insulator comes through the steel case. If the mixture is too lean, it will leave no color, while a rich mixture will cause the fuel ring to become more prominent.
What is the hose on the bottom of a carburetor?
Some carbs do not have a drain screw. They have a hose attached to bottom of carb. This has a seal in the end to stop FUEL coming out. It is only used for carb servicing/draining.
Why is my carburetor backfiring?
Generally, a backfire is caused by an imbalance in the air to fuel ratio. Either the engine is not getting enough fuel, which is also called running lean, or the engine is getting too much fuel, which is also called running rich.
What is the difference between a needle valve and a flow control valve?
The ‘Needle Valve’ controls flow in both directions, whereas the ‘Flow Control’ valve controls flow in one direction and provides full-flow in the reverse direction. Both are typically used in flow meter applications, primarily when a consistent, calibrated, low flow rate must be maintained.
What is the difference between a globe valve and a needle valve?
The difference is precision. Needle valves are similar in design to globe valves. The primary difference is the valve seat and the needle shape. Needle valves are valued for their use in calibration because they can be so finely tuned.
Can needle valve control pressure?
Needle valves, sometimes referred to as plunger valves, are regulating valves and enable engineers to finely control and regulate water flow and pressure.
What is a globe valve?
A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.
How do you know if a needle valve is open or closed?
In order to tell if the valve is open or closed, the general rule is, if the handle is switched 90deg to the flow, it is off. As you can see from the diagram above, if the handle is in line with the flow path, it is on.
Is needle valve isolation valve?
Ball valves and needle valves are mostly used for instrument isolation. Instrument needle valves provide a highly reliable task to regulate, throttle, and isolate gaseous, non-viscous liquid of various nature.
Are needle valves directional?
Unlike a Flow Control, a Needle Valve is bi-directional, meaning it controls flow in both directions instead of only one direction. … Flow enters the input port, travels through an orifice sized by the tapered stem and out the output port.
What are the symptoms of a bad carburetor?
- Engine Performance Reduction. As mentioned above, combustion starts and keeps your engine running. …
- Black Exhaust Smoke. You shouldn’t see black smoke coming out of your exhaust pipe even if you drive a diesel. …
- Engine Backfires or Overheats. …
- Starting Difficulty.
Does needle position affect idle?
It should not. That means a different needle straight diameter should have no effect on idle. If you think it does, it is because the slide is too high. Theoretically, your idle speed would be too high also.
What happens if main jet is too big?
Typical Lean Conditions: (A too-large main jet also mimics this symptom.) – The engine runs hot, knocks, pings and overheats. – The engine surges or hunts when cruising at part-throttle. – Popping or spitting through the carb occurs when the throttle is opened.
