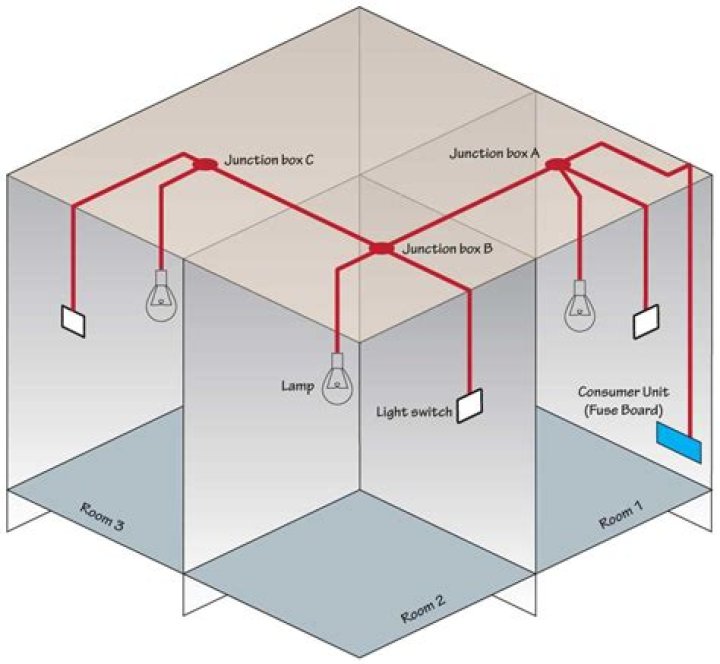

The modern lighting junction box, or electrical box, is where the electrical wires originate. The junction box is where you will connect the wires to the cord set, and also where the ceiling canopy will attach to support the light fixture.
What is a junction box and what is it used for?
Electrical boxes, also known as junction boxes, enclose wire connections. They help protect against short circuits, which can cause fires. This guide describes the different types of electrical boxes, their materials and their applications. They come in many shapes and sizes to fit wherever you need them.
Does every light fixture need a junction box?
Not all light fixtures require junction boxes because some have their own. These include recessed lighting cans, fluorescent fixtures and some types of track lighting. When installing one of these fixtures, it’s okay to feed the wire straight into the terminal box, make connections and screw the box closed.
What is considered a junction box?
Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring. This rule is demonstrated nicely by wall switches, receptacles, and standard light fixtures, all of which require a junction box to mount the device and house the wiring connections.
Are junction boxes bad?
Junction boxes are designed to protect your wiring connections from damage. Making electrical connections outside of a junction box will damage the wiring and increase the risk of heat and sparks.
Do you need a junction box for floodlight?
In the US, the National Electric Code requires one, though if a flood light is manufactured with an attached junction box (very common), then no additional junction box is required unless you are placing mor than one light on the same circuit or switch.
What's a junction box look like?
What Does a Junction Box Look Like? It’s a standard electrical box usually found mounted to the framing of a home or building that contains the connection of two or more circuit cables or wires. Junction boxes are usually metal or plastic and can range from 2 ½” to 3 ½” deep.
Can I use junction box to extend wiring?
Yes. You can definitely use a junction box to extend your wiring. To do this, start by turning off the power. Then inspect the place and cut the required openings.
What is the difference between a junction box and a terminal box?
Terminal box is used for specific connections, no space for future expansion or does not require expansion of connections in future. On the other hand, junction box is with minimum specific size, plenty of woking space. Future expansion can also be planned for new connections.
How many junction boxes can you have in a house?
There are no limits on the number of junction boxes (without devices) in any particular circuit. Each piece of ‘utilization equipment’ reduces the maximum allowable load by it nameplate rating, 180va for each receptacle, and each light fixture at its maximum labeled lamp wattage.
Article first time published on
Can I use a junction box to extend a ring main?
The best way of using junction boxes to extend a ring circuit, is to find the length of cable between the two sockets on the existing ring closest to the desired extension area. Once located it can be cut in the middle giving two lengths of cable from the existing circuit to use in the extension.
What if there is no junction box?
Installing a light fixture in a wall or ceiling without a junction box does not meet mandatory electrical codes. It poses a danger of electrical shock, and could cause a fire. Don’t take the risk of burning your house down over a two or three dollar electrical box.
Can you use an outlet box as a junction box?
Yes. For code-compliance purposes: Each 14 gauge wire is 2 cubic inches, each 12 gauge 2.25.
How many wires can be in a junction box?
For example, the smallest 2-by-4-by-1-1/2-inch-deep box can comfortably splice only two cables (four or five conducting wires), while the largest 4-by-4-by-2-1/8-inch-deep boxes can handle as many as four to six cables (up to 18 individual conducting wires).
How do I find a hidden junction box in my ceiling?
Access the area above the ceiling in a home. Follow the path of flexible conduits across the ceiling insulation to a point where two or more conduits appear to intersect. Pull back the insulation at these points to expose junction boxes.
Can junction box behind drywall?
Registered. Yes any concealed box is a code violation. All splices must be accessable. Now practically speaking if the splice is made properly with wire nuts and the cables properly clamped in the box, you can cover it without concern.
Where are junction boxes used?
Construction. A small metal or plastic junction box may form part of an electrical conduit or thermoplastic-sheathed cable (TPS) wiring system in a building. If designed for surface mounting, it is used mostly in ceilings, under floors or concealed behind an access panel—particularly in domestic or commercial buildings …
Does an outdoor light need a box?
Electrical code requires that all junctions be accessible in a box, so you definitely need one here. You have two choices (that I know of at least): cut a large hole in your siding and mount a retrofit light box into the wall cavity.
What is a remodel junction box?
Remodeling boxes, also called old-work boxes, are electrical boxes designed to be installed after drywall has been hung. … In contrast to new-work boxes, which are screwed to the wall studs before drywall is hung, old-work boxes hang on the drywall with clamps built in to the box.
What are the rules of a box junction?
These have criss-cross yellow lines painted on the road. You MUST NOT enter the box until your exit road or lane is clear. However, you may enter the box and wait when you want to turn right, and are only stopped from doing so by oncoming traffic, or by other vehicles waiting to turn right.
How many electrical wires are in a box?
Plastic Box Fill Capacities Single Gang Boxes: A total capacity of 18 cubic inches allows for nine #14 gauge wires, eight #12 gauge wires, or seven #10 gauge wires. This is a wires-only capacity. With one device added to the box, subtract two wires in each category.
Can junction box be in attic?
The primary requirement for junction boxes is that they remain permanently accessible. … However, the accessibility requirements do not prohibit you from installing a junction box in the attic. A common solution to accessibility problem is to have the box open to the underlying room’s ceiling.
How many junction boxes can you have on a ring main?
Each socket outlet or junction box on the ring can only have one spur connected. Trying to connect two or more is not only very difficult due to the number of wires involved, it can also result in an abnormally high load at that point in the ring.
When would you use an electrical junction box?
You’ll need a junction box if you can’t make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall.
What size junction box do I need for a lighting circuit?
For a lighting circuit use a 20amp junction box and for a ring main or radial circuit use a 30 amp junction box.
What is a flush mount electrical box?
Flush-mount power outlets (including switches, data jacks, and keypads) are installed directly into walls so that the outlet surface is flush, eliminating the need for cover plates. Flush-mount outlets integrate seamlessly with their surroundings: No more wall clutter.
