With the first device, the line is the wire running from the service panel to the device, and the load is the wire running from the first device to the second device downstream on the circuit. … The load side is where the power leaves the device (or electrical box) and travels down the circuit.
Is the load wire the live wire?
Position of the wires Line/incoming wires are always connected to the electrical panel from the bottom, while load wires are from the top.
What happens if you switch line and load wires?
Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. … If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.
Which is the load wire?
Load Wire – Generally connected to the top half of your switch. If the wire is coming from the top of the switch box, it is likely your load wire. Line Wire – Generally connected to the bottom half of your switch.
What is considered a live wire?
The live is the wire that has a high potential. It means it carries the high voltage and delivers it to the appliance. It is also called hot wire or phase wire. … Even if a circuit is switched off (i.e. the switch is open), the live wire can still be dangerous.
Does load mean hot?
Line is always hot. Load is the wire going from the switch to the device. Load will only be hot if the switch is closed.
Which wire is hot when both are same color?
In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means.
What is the difference between load and line on an outlet?
The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.
What does load mean in electrical?
An electrical load is simply any component of a circuit that consumes power or energy. In a household setting, the most obvious examples of electrical loads include light bulbs and appliances.
Which is load and which is supply?
Supply goes to the power source. Load goes to whatever it is you’re turning on and off. A Switch is usually placed between a Source of Power and a Device or Circuit which uses the Power. The Power Source is considered the Supply; and, the Circuit or Device is considered the Load.
Article first time published on
What's the difference between hot wire and load wire?
Line is the wire that goes from a source to a switch. It’s upstream of the switched device. Line is very hot. The wire from the switch to the device is called load.
What happens if you mix up line and load on GFCI?
If you mistakenly connect the LINE wires to the LOAD terminals, the GFCI will not reset and will not provide power to either the GFCI receptacle face or any receptacles fed from the GFCI.
What happens if I wire a switch backwards?
When an outlet is wired in reverse, the hot wire is now on the supposed neutral side. So, if you were to plug in the same lamp as noted above, the lamp socket would have power even if the switch was off since the switch is only on the hot side.
How do I know if a wire is neutral or live?
Here’s a rundown of electrical wires: The black wire is the “hot” wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel.
Is Live wire black or white?
US AC power circuit wiring color codes The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active.
What happens if you wire live and neutral wrong in a light?
If you swap live and neutral which are connected to a lamp, yes it will work fine. However, the switch on the lamp is connected on the Live side. So even though you have switched the lamp off, you have only broken the neutral return path and the light itself is still live.
What happens if you mix up hot and neutral wires?
This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it’s usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.
What happens if I Connect the black wire to the white wire?
It will produce a big spark and hopefully blow a fuse or trip a breaker. If you wire them together and then turn the power on, the spark will occur at the breaker or fuse. Either way, don’t do it.
Why does light switch have 2 black wires?
You should see two black wires, each connecting to a different screw on the side of the switch. These are called terminal screws. You will also see two white (neutral) wires that connect to one another in the box. … These are ground wires.
What is the use of live wire?
The live wire carries the current to the appliance. The live wire is also called hot wire. Live wire is brown or red in colour. This is the wire through which the current enters an appliance.
What is a load wire in a light switch?
Line Wire: This is the wire that provides the 120 Volts of power to your switch from the power company. … Load Wire: This is the wire that connects your switch to your light bulb or other “load” (ie: a fan or other appliance). It is also usually black.
What is the purpose of a load in a circuit?
The source side of the circuit includes all parts of the circuit between the positive side battery post and the load. The load is any device in the circuit that produces light, heat, sound or electrical movement when current is flowing. A load always has resistance and consumes voltage only when current is flowing.
What is a load device?
Definition: The device which takes electrical energy is known as the electric load. In other words, the electrical load is a device that consumes electrical energy in the form of the current and transforms it into other forms like heat, light, work, etc.
Does the load wire have power?
At the second device, the line is the power source coming in from the first device; the load is the wire going out to the third device on the circuit, and so on. The same meaning can apply to the device itself. … The load side is where the power leaves the device (or electrical box) and travels down the circuit.
Can two GFCI outlets be on the same circuit?
To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. … This provides the same protection as having a GFCI at each location.
Are line and load interchangeable?
On a basic single pole switch the terminals are interchangeable, so as long as you don’t include a neutral wire or swap in a ground wire you can’t really go wrong.

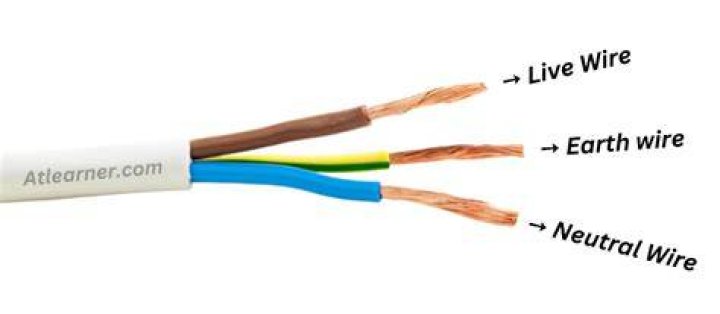

What Colour is live wire?
WireColourLiveBrownNeutralBlueEarthYellow and Green
What is the color of the load wire?
So, what color is the load wire? Load wires are mostly black, but red can also be used as a secondary load wire. They are also connected to the switch’s top half, while line wires are connected to the switch’s bottom half.
What does load and feed mean in electrical terms?
4 Answers from MyBuilder Electricians The feed is the cable from your fuse board, supplying the power to the isolator switch. The load is the cable supplying the appliance once you have switched the isolator into the on position.
Can I connect red and black wires together?
Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.
Does it matter what wire goes where on a light switch?
If it’s a single pole switch with two terminals, the answer is no. One wire is the power to the switch and the other wire goes to the light.
