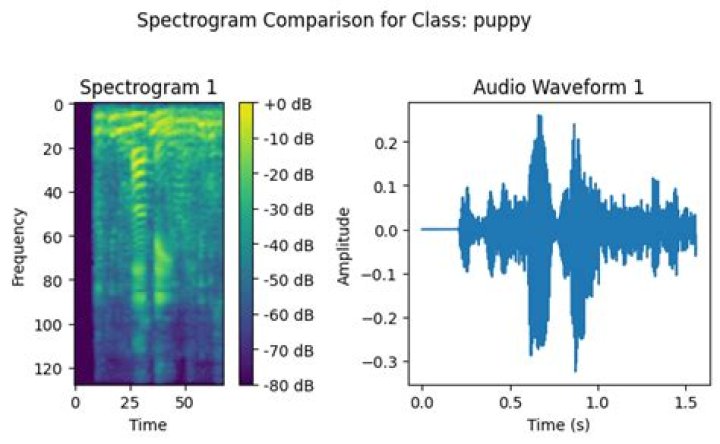

A spectrogram is a detailed view of audio, able to represent time, frequency, and amplitude all on one graph. A spectrogram can visually reveal broadband, electrical, or intermittent noise in audio, and can allow you to easily isolate those audio problems by sight.
What does an audio spectrogram show?
A spectrogram is a visual way of representing the signal strength, or “loudness”, of a signal over time at various frequencies present in a particular waveform. Not only can one see whether there is more or less energy at, for example, 2 Hz vs 10 Hz, but one can also see how energy levels vary over time.
How do I make an audio spectrogram?
- Split the audio into overlapping chunks, or windows.
- Perform the Short Time Fourier Transformation on each window. …
- Each resulting window has a vertical line representing the magnitude vs frequency.
- Take the resulting window and convert to decibels.
Where is a spectrogram used?
They can be used with special spectral editing effects to make changes to the frequency content of the selected audio. Among other purposes, spectral selection and editing can be used for cleaning up unwanted sound, enhancing certain resonances, changing the quality of a voice or removing mouth sounds from voice work.
What do you mean by Spectrum and spectrogram?
A spectrogram is a visual representation of the spectrum of frequencies of a signal as it varies with time. When applied to an audio signal, spectrograms are sometimes called sonographs, voiceprints, or voicegrams. When the data are represented in a 3D plot they may be called waterfall displays.
How is sound intensity represented when using a spectrogram?
The spectrogram is a representation of a sound’s power at each frequency over time and is very common in speech studies. This example clearly shows the evolution of frequency over time, which is indicated by the colour: ‘hotter’ colours indicate higher intensities.
When should a wide band spectrogram be used?
For situations where we are more interested in the frequency response curve of the vocal tract than in raw spectra, we can use “wide band” spectrograms. In these, the dark areas are smeared over a wider area. This often hides the individual harmonics, but it makes formants easier to see — they show up as dark bands.
What is the connection between a spectrogram and the sheet music?
Spectrograms map out sound in a similar way to a musical score, only mapping frequency rather than musical notes. Seeing frequency energy distributed over time in this way allows us to clearly distinguish each of the sound elements in a recording, and their harmonic structure.
What do the colors mean on a spectrogram?
With spectrogram displays, colors indicate vertical displacement. Different colors represent different y-axis values. The color bar at the left side of the display indicates the color scheme used. The VSA shows the range of Y-axis values that the color bar represents above and below the color bar.
What are the types of spectrogram?
We use two types of spectrogram for speech study: one which emphasises the frequency aspects by using long signal sections or narrow analysis filters, and one which emphasises the temporal aspects by using short signal sections or wide analysis filters.
Article first time published on
How is spectrogram created?
Generating a Spectrogram To generate a spectrogram, a time-domain signal is divided into shorter segments of equal length. Then, the fast Fourier transform (FFT) is applied to each segment. The spectrogram is a plot of the spectrum on each segment. … The result is a jagged spectrogram with many gaps in the data.
How do I convert a WAV file to a spectrogram?
Load a . wav file from local machine. Compute a spectrogram with consecutive Fourier transforms using spectrogram() method. Create a pseudocolor plot with a non-regular rectangular grid using pcolormesh() method. Use imshow() method with spectrogram. To display the figure, use show() method.
How is Mel spectrogram calculated?
- Separate to windows: Sample the input with windows of size n_fft=2048 , making hops of size hop_length=512 each time to sample the next window.
- Compute FFT (Fast Fourier Transform) for each window to transform from time domain to frequency domain.
What is spectrum of sound wave?
A sound spectrum displays the different frequencies present in a sound. Most sounds are made up of a complicated mixture of vibrations. … A sound spectrum is a representation of a sound – usually a short sample of a sound – in terms of the amount of vibration at each individual frequency.
How are the spectrum and the spectrogram related?
The frequency spectrum allows us to “see” the frequencies. … As the waveform shows, the loudness and frequency of the croaker’s vocalizations change with time. Another way to look at sound is with a spectrogram. A spectrogram shows the frequencies present and at what times in the sound they are present.
Does a spectrogram show amplitude?
A spectrogram, however, displays changes in the frequencies in a signal over time. Amplitude is then represented on a third dimension with variable brightness or color. You’ll notice that the waveform shows amplitude over time, but we can’t really see what’s happening at individual frequencies.
What is a wideband spectrogram?
Wideband spectrograms are marked by the relatively broad bands of energy that depict the formants. The centre of each band of energy is taken to be the frequency of the formant, and the range of frequencies occupied by the band is taken to be the bandwidth of the formant.
What do vowels look like on a spectrogram?
On a spectrogram, it looks a little like a cross between a fricative and a vowel. It will have a lot of random noise that looks like static, but through the static you can usually see the faint bands of the voiceless vowel’s formants.
What is a narrowband spectrogram?
A narrow band spectrogram (named after a narrow bandwidth filter) has good frequency resolution, meaning that small differences in frequencies can be detected. For a narrow band spectrogram, the time interval for each spectrum has to be large, in order to make fine distinctions in frequency.
How does audio steganography work?
Audio steganography is about hiding the secret message into the audio. It is a technique uses to secure the transmission of secret information or hide their existence. It also may provide confidentiality to secret message if the message is encrypted.
How do you decrypt sound?
- Select an encrypted audio recording.
- Select an Audio Recording which you wish to Decrypt (UnLock).
- Click on Actions menu & select Decrypt option.
When your vocal cords relax you produce sound waves with?
When your vocal cords relax, you produce sound waves with lower frequencies and lower pitches. The unit used to measure the loudness of different sounds. Explains a change that occurs in the frequency of a wave as its source moves in relation to an observer.
What is the difference between sound intensity and sound intensity level?
The sound intensity level is not the same as sound intensity—it tells you the level of the sound relative to a reference intensity rather than the actual intensity.
How do the loudest sounds we can tolerate compare with the faintest sounds?
How does the loudest sounds we can tolerate compare with the faintest sounds? The loudest sound that we can tolerate is almost one trillion times more intense than the finest sound we can hear.
What is audio waveform?
Term: Waveform (sound) For sound, the term describes a depiction of the pattern of sound pressure variation (or amplitude) in the time domain. … The simplest waveform is the sine wave, since it has only one frequency associated with it. The sound waves associated with, say, music, are constantly varying.
What uses a sound spectrograph?
Spectrograph. A SOUND ANALYSER with graphic output showing the SPECTRUM or frequency content of a sound and its variation in time. It is commonly used for speech analysis, and is sometimes called a sonagraph or visible speech. The graphic output is called a spectrogram or sonagram.
How do you plot a spectrogram of a signal in Python?
- import matplotlib.pyplot as plot. import numpy as np.
- # Define the list of frequencies. frequencies = np.arange(5,105,5)
- # Sampling Frequency. samplingFrequency = 400.
- # Create two ndarrays. …
- s2 = np.empty([0]) # For signal. …
- start = 1. …
- stop = samplingFrequency+1. …
- sub1 = np.arange(start, stop, 1)
How do you make a waveform image from an audio file?
- Open your audio recording software and record a short message.
- Take a screenshot of your recorded waveform.
- Import the screenshot into Google Docs.
- Optional: edit the image.
- Print and assemble artwork!
