Preheat is the temperature to which the surfaces to be welded together are heated, before welding commences. Interpass temperature is the temperature at which subsequent weld runs are deposited.
Which is important preheat or interpass?
Interpass temperature is just as important as preheat temperature due to its relation with the mechanical and microstructural properties of weldments. For example, the yield and ultimate tensile strength of the weld metal depend on interpass temperature.
When welding austenitic stainless steel the interpass temperatures should not be higher than?
Recommended values for austenitic steels: max. 2.0 kJ/mm. The interpass temperature shouldn’t be above 150°C. Preheating and PWHT is usually not essential for austenitic steels.
What is the normal welding temperature?
We all know welding includes hot hot heat, but how hot is the welding arc, really? On average, a welding arc is between 6500 and 10,000˙F. But a plasma arc can be up to 50,000˙F! Welding is a curious trade.
What is the highest temperature a weld is performed at?
“In the electric arc, the temperature is very high(of the order of 6,000-8,000 °C for the GTAW, GMAW, FCAW and SAW processes, and up to 10,000 20,000 °C for the PAW process) and well above the boiling point of the base and filler materials ….”
How do I find my welding interpass temperature?
Accepted method of controlling the interpass temperature is to use two temperature indicating crayons. A surface applied temperature indicating crayon (often referred to by the trade name Tempilstik) melts when the material to which it is applied reaches the crayon’s melting temperature.
What is weld Interpass?
Interpass temperature is the temperature at which subsequent weld runs are deposited. Procedures can specify a maximum interpass temperature, which is done to control weld metal microstructural development, and also ensures that the weld is similar to the welds made in the procedure qualification.
How hot is a MIG weld?
During GMA (MIG) welding, the base metal melts and fuses with the melted filler metal at a temperature of approximately 1,650°C (3,000°F). This is considered a fusion process. When brazing, however, the temperature is considerably less, with a welding temperature 1,940°F.
Is a weld hotter than the sun?
A welding arc is not brighter than the sun, no matter how bright it may seem to you. Welding arcs are bright and produce a lot of heat. Welding produces around 3400 K of heat, whereas the sun produces 5800 K. If we were to measure brightness through radiated heat, then the sun is the undisputed winner in this battle.
What voltage is used for welding?
As the welding processes require high current (50-300A) at relatively low voltage (10-50V),the high voltage mains supply (230 or 400V) must be reduced by a transformer.
Article first time published on
Which welding is used for stainless steel?
TIG Welding or Gas Tungsten Arc Welding Offering high quality, versatility and longevity, TIG is the most commonly used stainless steel welding process. This welding process creates a low heat input, which makes it perfect for thin material.
What is the final pass of a weld called?
cover pass. the final weld pass of a multiple-pass weld that forms the weld face.
Which welding position has highest heat input?
Position: Vertical-up progression – Highest heat input due to the necessity to weave a suitable profile and the relatively slow forward travel speed. Vertical-down – Lowest heat input because of the high travel speed.
What is the 9 different types of welding processes?
- TIG – Gas Tungsten Arc Welding (GTAW) Image Credit By: Prowelder87, Wikimedia. …
- Flux-Cored Arc Welding (FCAW) Image Credit By: Alfred T. …
- Stick – Shielded-Metal Arc Welding (SMAW) …
- MIG – Gas Metal Arc Welding (GMAW) …
- Laser Beam Welding. …
- Electron-Beam Welding. …
- Plasma Arc Welding. …
- Atomic Hydrogen Welding.
Can welding be done in cold weather?
Freezing temperatures will cause your welds to cool much faster which can cause cracking and a lack of adequate penetration. Cold weather also means a bigger difference in temperature between your weld and your work piece. This can cause severe warping. An easy solution is pre-heating.
What does arc mean in welding?
Arc welding is a type of welding process using an electric arc to create heat to melt and join metals. A power supply creates an electric arc between a consumable or non-consumable electrode and the base material using either direct (DC) or alternating (AC) currents.
How do you take an interpass temperature?
One accepted method of controlling the interpass temperature is to use two temperature indicating crayons. A surface applied temperature indicating crayon (often referred to by the trade name Tempilstik) melts when the material to which it is applied reaches the crayon’s melting temperature.
How do you know the temperature is preheated?
1 provides two additional methods to determine preheat. These methods are 1) Heat Affected Zone (HAZ) Control Method, and 2) Hydrogen Control Method. Specific instruction can be found in Annex H of AWS D1.
What temperature do you preheat steel before welding?
Generally, for higher carbon steels, a maximum preheat of 400 degrees F (200 degrees C) is acceptable. For alloy steels, 250 degrees F (120 degrees C) will do. Warming up to welding temperatures must be controlled properly.

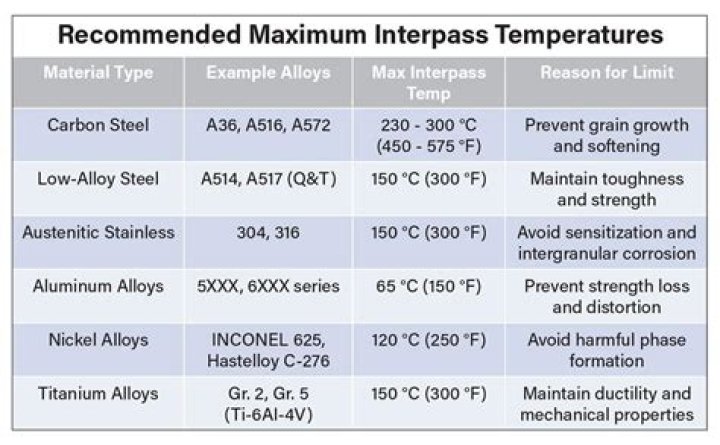

What is the maximum interpass temperature?
Maximum interpass temperatures of 150°C for austenitic stainless steel and nickel-base alloys, and 70°C for aluminum alloys are generally required to prevent hot cracks.
What is heat input in welding?
Technically speaking, heat input is the amount of electrical energy supplied by a welding arc to a workpiece. … Heat input is important because it affects weld cooling rates, which in turn affects the heat affected zone and the microstructure of welded materials.
What is molten weld pool in welding?
Weld pool commonly refers to the dime-sized workable portion of a weld where the base metal has reached its melting point and is ready to be infused with filler material. The weld pool is central to the success of the welding process.
Can welding give you a tan?
As a welder, you can tan while at work. Talk about a good deal! At least until you’ve got skin cancer or 3rd degree sunburns. Pro-tip: You can avoid those unsightly tan lines by welding naked (ouch).
What temperature does a welding rod burn at?
Electric arcs are very hot, which is why arc welding is such as an effective welding process. While different metals require different temperatures, arc welding is usually performed with an arc temperature of roughly 10,000 degrees Fahrenheit.
Is Arc Welding hotter than MIG?
Mig Welders and Tig Welders introduce much less heat to the job, despite an arc being far hotter than a flame. Mig because it’s faster and Tig because it’s more precise about where the heat is focused, ie is where it’s needed.
Can I MIG weld cast iron?
MIG welding cast iron Although cast iron can be welded with the MIG process and specialised flux-cored electrode wires, the resulting welded joint won’t be as strong as with MMA arc welding.
How hot is a welding spark?
At such high temperatures, the molten metal bubbles and spits, expelling a shower of incandescent droplets: these are the sparks you see. They can be as hot as 1,300 degrees Celsius (2,500 degrees Fahrenheit) so be sure to stand clear!
What is the maximum temperature of weld zone in spot welding?
Welding current and time are used to bring the metal to welding temperature (2550 Degree F.).
Is AC or DC better for welding?
DC stick welding offers advantages over AC when welding steel, including smoother and more stable arcs, easier starts, fewer arc outages, less spatter and easier vertical up and overhead welding. DC positive polarity provides a high level of penetration into the steel.
What is polarity welding?
What is polarity in welding? The electrical circuit that is created when you turn on the welder has a negative and a positive pole – this property is called polarity. Polarity matters greatly in welding because choosing the right polarity affects the strength and quality of the weld.
What does DC mean in welding?
Direct current is an electric current that has a constant polarity flow in a single direction. This current can be positive or negative. With DC welding, since the magnetic field and current of the arc are constant, stable arcs are produced.
