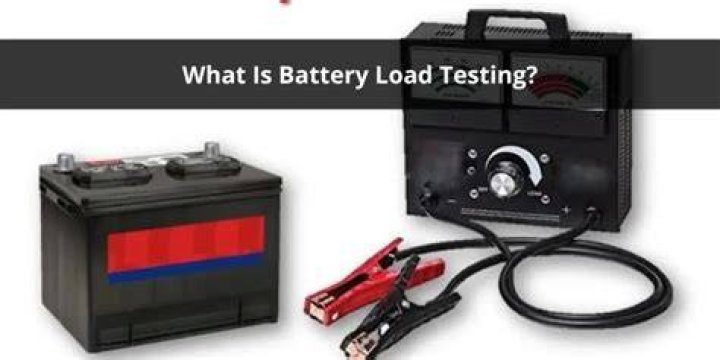

Battery load testing entails measuring the amperes produced through a charged battery and is specifically applicable for automobile batteries. The battery in a truck or car is required to produce high amperes in order to power the starter motor as well as turn the automobile’s engine.
How does a battery load tester work?
How Does a Battery Tester Work? Battery testers work by applying load and monitoring the voltage and current of the battery. The actual process is quite simple – when the conductive elements of the tester touch both the positive and negative contacts on the battery, the current is released and can be measured.
Can a battery load test good and still be bad?
Sure. It could be showing a voltage higher than 12 volts and still be bad. If it is bad it will die or drop significantly when put under load. Battery testers don’t just measure voltage.
How accurate are battery load testers?
To test a sealed battery or to troubleshoot a charging or electrical system, you will need a digital voltmeter with 0.5 percent (or better) accuracy. A digital voltmeter can be purchased at an electronics store.
What should a 12v battery read under load?
A good battery will sit around 12.6 to 12.8 volts when fully charged. When a good battery is put through a load test equal to its rated CCA (cold cranking amps) its voltage will drop to around 9.6 to 10.5 volts depending on the ambient temperature. It will then shoot back up to ~12.6 volts once the load is removed.
How many amps should a battery be load tested at?
The Load Test requires a high rate discharge tester to be connected to the battery. The load should be set to 1/2 the Cold Cranking Amps (CCA) or 3 times the Amp-Hour rating. The load should be applied for 15 seconds and the voltage should not drop below 9.6V (at a battery temperature of 70°F or 21°C).
When should you load test a battery?
At 40° F, the voltage would need to be at least 9.3 volts to pass the load test. However, if the battery is at 30° F, the battery is good because you are above the minimum required voltage.
Why does my car keep dying with a new battery and alternator?
Some of the most common reasons for a car battery to die repeatedly include loose or corroded battery connections, persistent electrical drains, charging problems, constantly demanding more power than the alternator can provide, and even extreme weather.
How do I know if I have a dead cell in my car battery?
- Reading 0 volts, chances are the battery experienced a short circuit.
- Cannot reach higher than 10.5 volts when being charged, then the battery has a dead cell.
- Fully charged (according to the battery charger) but the voltage is 12.4 or less, the battery is sulfated.
Is 11.6 volts enough to start a car?
The normal voltage needed to start the car begins from 12.6 volts. At the time of exploitation, this parameter is between 13.7 to 14.7 volts.
Article first time published on
Why is my 12V battery 14V?
That’s the normal process of how an alternator works. It outputs a higher voltage than the battery so that it charges the battery. A normal battery reads at about 12–14V without a load on it, with 12V being the standardized figure.
What voltage is too low for a 12 volt car battery?
12.0 volts or below – At 12.0 volts your battery is considered to be fully discharged or ‘flat’ and should be recharged as soon as possible. The lifespan of your battery will be severely affected if it remains within this voltage range for extended periods of time.
What happens to battery voltage under load?
When the battery is in the system it’s closed cell voltage under load. You are dropping some voltage across the internal impedance of the battery because your system is drawing current when the measurement is being made (so at the terminals the voltage is indeed lower).
How much of a load is placed on a battery that has a 500 CCA rating?
This number is usually half of the CCA rating. For instance, a 500 CCA battery would load test at 250 amps for 15 seconds.
What are the signs of a bad battery?
- Dim headlights. If your car battery is failing, it’s not going to be able to fully power your vehicle’s electrical components – including your headlights. …
- Clicking sound when you turn the key. …
- Slow crank. …
- Needing to press on the gas pedal to start. …
- Backfiring.
Is 11.9 volts enough to start a car?
When the probes touch the terminals while the car is off and the battery is resting, the multimeter display should show a reading of 12.2 to 12.6 volts (full charge). This voltage range means the battery is in good condition for starting the vehicle.
Can you jump start a battery with a dead cell?
A car battery will usually come in 12v DC with a cold cranking amperage rating. … A dead battery is just that, dead, there is no residual charge left and more often than not will have a dead cell that drains the other cells of charge continuously. Dead batteries will not take a charge and therefore cannot be jumpstarted.
Why is my battery draining when my car is off?
Even while your car is off, your battery provides power to things like the clock, the radio, and the alarm system. These things shouldn’t have a major impact on your battery. … But when the engine is off, the alternator can’t recharge the battery, allowing little electrical mishaps to drain your battery entirely.
At what voltage will a car not start?
When the battery voltage is lower than 10.8V, it is generally impossible to start the car. You need to replace the battery or use Jump Starter to start the car in an emergency.
At what voltage is a car battery dead?
A fully charged battery should register at 12.7 volts or more. If the voltage falls below this number, the battery should be recharged. A battery is only charged by one quarter at just 12 volts. Once it drops to 11.9 volts, your battery is considered dead.
What should a 12 volt battery read on a multimeter?
A fully charged battery will typically display a voltmeter reading of about 12.6 to 12.8 volts. If your voltmeter is showing a voltage anywhere between 12.4 and 12.8, that means your battery is in good shape. Any voltage above 12.9 volts is a good indicator that your battery has excessive voltage.
How do you check if a car battery is good?
Connect the multimeter to the positive and negative battery terminals. If you don’t have a voltage of around 12.6 volts, you may have a bad battery. Now start the car, and look for a revised voltage over 10. If your voltage drops below 5 when the car is running, it is bad and should be replaced right away.
Is 14.2 volts good for a car battery?
With the car not running you should get a reading of 12.4 – 12.6. Anything less than 12 volts means the battery needs to be charged or replaced. … 14.2-14.3 is normal bulk charging voltage for standard and AGM batteries.
Is 14.6 volts good for a car battery?
What is considered low voltage? 14.6 would be high normal, 13.5v would be acceptable battery charging voltage.
Is 14 volts good for alternator?
The voltage should read a minimum of 13 volts. A good alternator should put out between **13.5-14.5 volts. … If the voltage does not change when the engine is started, if it does not get above 13 volts, or if it charges above 15 volts then the alternator may be faulty.
