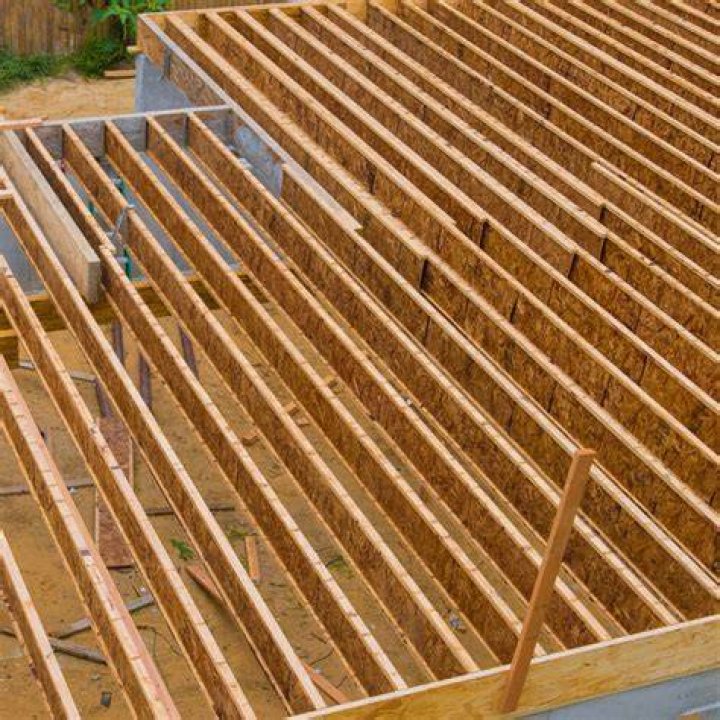

What is I joist floor system

I-joists are strong, lightweight, “I” shaped engineered wood structural members that meet demanding performance standards. I-joists are comprised of top and bottom flanges, which resist bending, united with webs, which provide outstanding shear resistance.

What is the difference between an LVL and I joist?

The I-joists are made from lumber flanges, OSB webs and cured adhesive. LVL (laminated veneer lumber) beams are manufactured with multiple layers of thin wood assembled with adhesive. Stark Truss engineered LVL beams are strong, consistent and straight.

Which is better I joist or floor truss?

Firefighters prefer floor joists because it takes awhile for a fire to burn the lumber to the point when it’s unsafe for them to be inside the building trying to knock down a fire. Floor trusses fail faster.

Are I-joists stronger than timber?

Are I joists stronger than timber? … They can span greater distances, and are considered to be 50% stiffer than dimensional timber under traditional frame spacing. Unlike timber, the strength of an I joist is not affected by cut holes that are used to run plumbing.

What does an I joist look like?

I-joists are strong, lightweight, “I” shaped engineered wood structural members that meet demanding performance standards. I-joists are comprised of top and bottom flanges, which resist bending, united with webs, which provide outstanding shear resistance.

Is LVL stronger than hardwood?

One of the major differences between LVL and conventional lumber is that – due to the emphasis placed on quality bonding in LVL – there are no naturally occurring knots. This not only makes the product stronger, but more durable than conventional lumber.

Can you use I joist for rafters?

Wood I-joists are used as a framing material primarily in floors, but may also be used as roof rafters where long length and high load capacity are required. They are used as an alternative to sawn lumber.

What does TJI joist stand for?

Is LVL better than solid wood?

Laminated veneer lumber (LVL) studs can provide ultimate strength against wind and shear-loads and can be up to two and a half times stronger than standard framing lumber of the same dimension in compression and tension, which means a wood-framed house can be designed and constructed to withstand 100 mph or more .

Are I joists cheaper?

I-beams are increasingly taking over in new residential construction. In new construction, it is cheaper to use engineered joists in some cases. For instance, it is possible to use half the number of I-beams compared to 2x10s since I-beams can span further with center support.

Article first time published on

Are I joists more expensive?

An advantage over lumber is that a deeper I-joist member is only incrementally more expensive than a shallower member because it is made deeper by adding more web material.

How far can you span with I-joist?

Span refers to the length of the I-joist. The L/480 table with a 40 per square foot live load and a 20 per square foot dead load with a depth of 11 7/8 inches will give you spans according to joint weight. With these factors, the lightest joist will have a maximum span of 17 feet, 8 inches.

Can you drill holes through floor joists?

You can drill the holes anywhere along the length of the joist (first photo). If you have manufactured I-joists, you can drill holes up to 1-1/2 in. diameter almost anywhere in the web area (the area between the flanges).

Are I-joists cheaper than trusses?

ADVANTAGE: I-Joists “I’s” are significantly cheaper than Floor trusses. Money that can be used on other things throughout the house building process.

What is the cost of a floor joist?

12Cost to sister floor joists$100 – $300 per joistCost to replace floor joists$6,000 – $10,000+Cost to replace floor joists, jack required$20,000+

Are I-joists safe?

I-JOISTS AND FIRE The lumber industry will say that as a protected assembly, following ASTM E-119, Standard Test Methods for Fire Tests of Building Construction and Materials, the wooden I-joists should pose no significant threat.

How do I-joists work?

Joists—the horizontal members that span two walls and/or beams—have to carry the weight of the walls, people, furniture, appliances and other stuff we place on them. When a load is applied to a joist, the wood fibers along the bottom edge go into tension and those along the top go into compression (Fig. A).

Which is better rafters or trusses?

If you plan on increasing the amount of room or storage space in your attic, rafters are the right choice. If you’re looking to keep your attic the way it is and want stronger support and quicker roof construction, we recommend installing roof trusses.

Can I-joists be used as beams?

Joists can be thought of as several small beams. Joists are basically a horizontal structural member that runs across an open space. Their function is primarily the same as beams, except joists are supported by wall framing, foundations, or beams.

What is the difference between joists and rafters?

The only difference between joists and rafters are the amount of load they must be designed to carry, and their angle – that is generally it. … They primarily use lighter, smaller pieces of wood in their construction that allow them to be cheaper than traditional rafters.

What are the disadvantages of LVL?

Although its dimensional stability is better than solid wood, the product may result in some defect, such as warping, if it is not properly stored in the warehouse. Also, LVL requires high capital investment to have relatively low production cost.

Is glulam the same as LVL?

LVL refers to a manufactured timber product made from thin veneers (often 3mm) glued together to form large structural members, often known as Hyspan or similiar. Glulam is made from thicker sections of timber, generally 15-45mm thick, glued together to form a large variety of products.

What size does LVL come in?

LVL is available in lengths up to 24.4 m (80 ft), while more common lengths are 14.6 m (48 ft), 17 m (56 ft), 18.3 m (60 ft) and 20.1 m (66 ft). LVL can easily be cut to length at the jobsite. All special cutting, notching or drilling should be done in accordance with manufacturer’s recommendations.

Do LVL beams sag?

Your wood/LVL will sag much more. What you are describing is ultra typical when there is a point load above and they used LVL. I don’t know why cities keep allowing the use of LVL for anything more than 10 feet. It will look great and then year 2-3 it starts sagging… year 4-5 you get cracks and notice it…

Can you drill through a LVL?

Whenever possible, avoid drilling vertical holes through LVL beams unless the beam width is at least 3-1/2 inches. Prior to drilling any vertical holes, an engineer or architect qualified in wood design should be consulted.

How much does an LVL beam cost?

LVL beams cost on average $3 to $12 per linear foot for the material or $50 to $200 per foot installed. LVL beams are more cost-effective and durable than regular wood beams.

How heavy is a TJI joist?

Product LengthProduct Length Sold by lineal footFlange WidthFlange Width 2-1/16″WeightWeight 2.49Product Type1Product Type1 I-JoistsJoist SeriesJoist Series TJI® 210

Who owns Trus Joist?

‘ … We created a whole new industry of laminated veneer lumber.” When Trus Joist was purchased by Weyerhaeuser in 1990, it was a Fortune 500 company with annual revenues nearing $1 billion.

Are TJI joists good?

I-joists can be a great product for a new home project. … And similar to the floor truss, I-joists can span greater distances than 2×12’s. Most I-joists also come with knockouts to run plumbing and wires through to save time on drilling. The prices are also more stable than dimensional lumber.

What type of wood is best for floor joists?

Lumber Grade Lumber graded as #2 is the most common choice for floor joists and other framing lumber. It has more knots and defects than higher grades, but usually not enough to cause significant loss of bending strength.

What floor joists are best?

Types of Floor Joists Solid lumber is generally the most economical choice for joists, though price will vary based on wood species, board size and lumber grade. These same factors can also affect the maximum joist span. Aside from being affordable, lumber joists also survive best in both fires and floods.
