Isolation Ball Valves are used to shut off the flow of water to the manifold. These full-port valves are factory-installed on Custom Tubular Manifolds. … Isolation Ball Valves are used in commercial and industrial applications for a full range of liquids and gases.
What is the purpose of isolation valve?
An Isolation Valve is used in fluid management to stop the flow of process fluids in a pipeline, this is usually for maintenance or safety purposes. They can also be automated to provide flow path selection to change the flow path in a continuous or batch process.
Can ball valves be used for isolation?
Spherical – AKA “Ball” valves – are acceptable for most applications. The official interpretation in Schedule 2 is less than helpful and basically states a stopvalve is a valve that stops water!

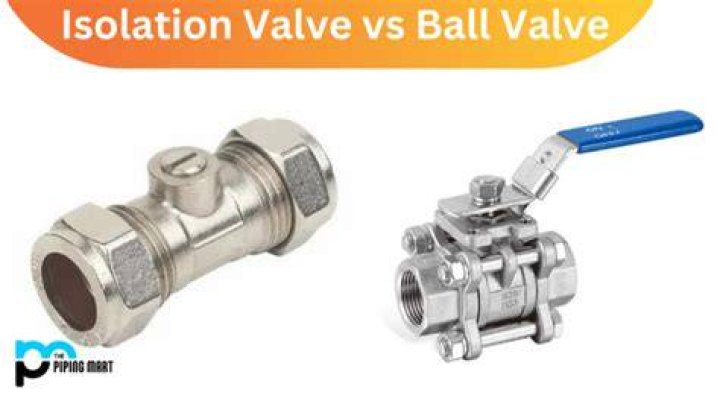

Is an isolation valve the same as a ball valve?
Both ball valves and gate valves are isolation valves that offer a degree of flow regulation. … They use a quarter turn of the handle to turn the ball horizontally to block off the bore that allows fluids to flow. By contrast, a gate valve uses a plate, disc, or wedge to interrupt or allow flow stream.
Where is the isolation valve?
The isolation valve is usually located under your toilet or tap. To turn it off you’ll need a flat head screwdriver. When the water’s on, the slot on the isolation valve should follow the pipe work. To turn the water off, give the slot a quarter turn in either direction, so it’s going across the pipe work.
What is the difference between an isolation valve and a service valve?
Servie valves are located at a water outlet, taps, showers, cisterns etc and isolation valves isolate a number of appliances like a bathroom or kitchen etc.
What are the types of isolation valve?
Gate, globe, ball, butterfly, play, and diaphragm valves are all types of stop or isolation valves. These all valves used for isolation of fluid in a pipeline.
What does an isolation valve look like?
Isolation valve Stopping the flow of water from your taps is really easy. Look at the isolation valve. You can see what looks like a slot-headed screw. If the slot is parallel with the arrow on the valve, the water is flowing through the pipe.
What is another name for isolation valve?
A diaphragm isolation valve—also known as a “membrane valve”—is a solenoid-operated device that uses a diaphragm that extends and retracts to seal the valve seat and isolate the flow path.
What is the best type of valve to use for isolation?
Gate Valves are used specifically in isolation applications in different piping systems, and they also operate fully when they are in opened or closed positions.
Article first time published on
When would you use a ball valve?
Ball valves are more effective at forming a tight seal and have more reliability and longevity than gate valves, but tend to be more expensive. They are often used for shutoff and control applications. Because ball valves can open and close immediately, they are more likely than gate valves to cause water hammer.
What is the purpose of ball valve?
A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked.
Why do isolation valves leak?
The most common reason for an isolation valve to leak would be age-related wear and tear (given moderate use). This is a simple fact of life when working with anything that has moving parts.
Do isolation valves reduce water pressure?
1 Answer. They won’t reduce the static pressure, just the dynamic pressure when there is water flow.
What happens if you put an isolation valve on the wrong way?
The ball is held on the seating with a spring clip any weight of water the wrong end will push the ball off the seating and eventually out the end of the fitting, along with the little ball.
Do isolation valves fail?
ConfigurationIsolation valvesSegmentsLimited11286Scarce9165
Can you put isolation valves on plastic?
There are two types of material that isolation valves can be fitted to, these are copper and plastic. … Plastic pipes often have a valve-like bottle top that can be turned.
What is isolation valve in fire Main?
Isolating valves separate the section of the fire main within the machinery space containing the main fire pump or pumps from the rest of the fire main and shall be fitted in an easily accessible and tenable position outside the machinery spaces.
Can you use isolation valves on central heating?
Central heating isolation valve are often refered to as butterfly valves. … These isolation valves are suitable for Heating Applications Only.
What is a service isolation valve?
Isolation valves, sometimes called shut off valves or service valves are used to cut off the water supply to anything in the home that is permanently connected to the water supply. … The main role of the isolation valve is to enable you to “isolate” a given appliance. For example.
Can butterfly valves be used for isolation?
Butterfly valves offer true isolation and control capabilities in a single product. Designed for accurate flow and pressure control, they are ideal in applications where positive isolation is required.
What is valve and types?
- Isolation Valves: Ball, butterfly, diaphragm, gate, pinch, piston, and plug valves.
- Regulation Valves: Ball, butterfly, diaphragm, globe, needle, pinch, and plug valves.
- Safety Relief Valves: Pressure release and vacuum relief valves.
Do showers have isolation valves?
Re: Isolation Valves on showers It is not in the water regulations. You have to have a service valve on the hot water supply. For cold supply, you only have to have service valves on anything with a float (aka ballcock) valve WC cistern central heating header tank, cold water tank etc.
How do tap isolation valves work?
For taps, all you need do is turn the valves to the off position, open the taps to release the small amount of water that will be between the valve and the tap itself, after which, you are free to disassemble the tap, change a washer, or carry out repairs – simple. Once the work is done, just turn the valve back on.
How do you choose a ball valve?
When selecting a material for the seat, consider the type and temperature of the media the valve will be handling. Many elastomer materials cannot be used in high temperature or corrosive material.
Can you throttle flow with a ball valve?
Ball Valves To get the best use of a ball valve, we recommend using it for throttling gases in low-flow circumstances. A ball valve design allows it to close and hold fluids that are generally harder to contain, such as gas and vapor.
Can you throttle with a ball valve?
BALL VALVES Many people use them successfully for throttling clear water. Ball valves have low pressure drops, open and close quickly, are simple, and are trouble free. With the development of Teflon seals, ball valves have grown in popularity. Opening or closin a ball valve too quickly can cause fluid hammer.
Can I use a ball valve to regulate flow?
Simply put, a ball valve is an on-off valve. It can be used to control flow by its main characteristic, the ball, being open or closed. … Furthermore, a ball valve can be partially open to regulate the flow of gas/liquid. An advantage to the ball valve is that it’s relatively easy to tell when it is open or closed.
What are the advantages of a ball valve?
- They provide leak-proof service,
- Open and close quickly,
- Compared to gate valves, they have very small dimensions,
- Compared to gate valves, they are lighter,
- The multi designed flexibility does not exist in the Gate or Globe valve, and hence it lowers the amount of valves needed,
What industries use ball valves?
Ball valves are typically used for flow and pressure control. By providing a leak-proof service, and being quick to operate, ball valves are a popular choice in the oil and natural gas industries; though, they can also be found in the manufacturing and chemical storage sectors, and even for residential use.
Why do ball valves fail?
A variety of factors can contribute to ball valve failure including poor design (chemical compatibility, rated pressure/flow rate, etc.), faulty installation, and/or improper operation. … Understanding flow behavior inside the ball valve can help manufacturers improve design from failure a prevention perspective.
