An Availability Group in SQL Server supports a failover environment for a set of user databases, known as Availability Databases that fail over together. It supports set of primary databases and one to eight sets of corresponding secondary databases. Each Availability Database set is hosted by an Availability Replica.

What is SQL availability Group?

An Availability Group in SQL Server supports a failover environment for a set of user databases, known as Availability Databases that fail over together. It supports set of primary databases and one to eight sets of corresponding secondary databases. Each Availability Database set is hosted by an Availability Replica.

What is the difference between always on and availability groups?

AlwaysOn Availability Groups (AAG) provide high availability and disaster recovery at SQL database level. … An AlwaysOn node manages backups of availability databases. This node is a shared node that allows data backups and restores of availability databases from any database replica in the cluster.

What is the purpose of availability groups in the SQL environment?

Introduced in SQL Server 2012 (11. x), Always On availability groups maximizes the availability of a set of user databases for an enterprise. An availability group supports a failover environment for a discrete set of user databases, known as availability databases, that fail over together.

What is SQL High Availability?

High Availability means that the SQL Server instances or databases will be available and reachable, with the least possible downtime, in case of any server crash or failure.

How many databases can you have in an availability group?

There is as such no limit defined. Microsoft has tested only upto 10 AG and 100 Databases. If you want to create more AGS, You will have to do so and test the workload you have to see that you do not land into performance issues for same.

How do you set up an availability group in SQL?

Run the SQL Server Configuration Manager and double-click the SQLServer (MSSQLSERVER) service to open the Properties dialog box. Select the Always On High Availability tab in the Properties dialog box and check off the Enable Always On Availability Groups checkbox. Click OK when prompted to restart the Server service.

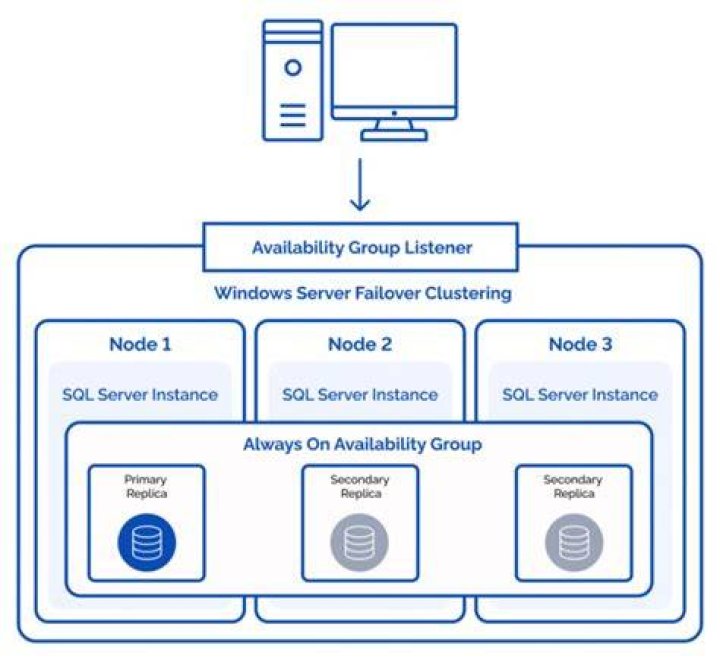

What is availability group listener in SQL Server?

An availability group listener is a virtual network name (VNN) that clients can connect to in order to access a database in a primary or secondary replica of an Always On availability group. A listener allows a client to connect to a replica without having to know the physical instance name of the SQL Server.

How does database availability group work?

A database availability group (DAG) is a set of up to 16 Exchange Mailbox servers that provides automatic, database-level recovery from a database, server, or network failure. DAGs use continuous replication and a subset of Windows failover clustering technologies to provide high availability and site resilience.

How do I ensure high availability in SQL Server?

  1. Replication.
  2. Log Shipping.
  3. Mirroring.
  4. Clustering (Failover Cluster)
  5. AlwaysON Availability Groups (AG)

Article first time published on

How do you set up a Always availability group?

Right click on SQL Server Services and open the Properties dialog box. Navigate to the AlwaysOn High Availability tab and select the Enable AlwaysOn Availability Groups checkbox. Restart the SQL Server Service after making these changes. Complete these steps on all your replicas.

What is SQL clustering?

SQL Server clustering is the term used to describe a collection of two or more physical servers (nodes), connected via a LAN, each of which host a SQL server instance and have the same access to shared storage. … To improve performance, you need to upgrade the computing power of the servers.

What are the main differences between the SQL Server Always On failover cluster and the SQL Server Always On availability Groups?

Always on clustering means you have created availability groups on database(s) which is part of failover cluster instance (FCI) and availability groups simply means two standalone nodes which are part of WSFC or not are configured to form AG, there is no FCI here.

How do I make my database highly available?

  1. Eliminate any single point of failure: Adding redundancy, so that the failure of any one part of the system does not lead to the collapse of the entire system.
  2. Reliable crossover: In a redundant system, the crossover point itself becomes a single point of failure.

What is a distributed availability group?

A Distributed Availability Group is a special type of Availability Group that spans two separate Availability Groups. You can look at it as an “Availability Group of Availability Groups”. The underlying Availability Groups are configured on two different Windows Server Failover Clustering (WSFC) clusters.

How does high availability work?

In general, a high availability system works by having more components than it needs, performing regular checks to make sure each component is working properly, and if one fails, switching it out for one that is working.

How do I add a database to availability group?

  1. To launch the Add Database to Availability Group Wizard, select the Add Database command. …
  2. To add one or more databases by specifying them in the Availability Group Properties dialog box, select the Properties command.

How do I create availability group in SQL Server 2016?

Configure SQL Server 2016 AlwaysOn Availability Groups Go to Management Studio, right click Availability Groups and click New Availability Group Wizard. Specify Availability Group Name . This group name is SQLAVG2016. Then click Next.

How do I create availability group in SQL Server 2017?

Go to SQL Management studio, connect to any of the SQL instances that will be part of the group, look for the “Always On High Availability” folder, expand it and you will see a folder with the name “Availability Groups” do a right click on it and select “New Availability Group Wizard…”

Can a database be in multiple availability groups?

The cluster node can participate in multiple availability groups, with one replica from each group. Ask your database administrators how many cluster nodes are required for to support the availability replicas of the planned availability groups.

How many Always On availability Groups can be configured in always on?

You can have more than one AlwaysOn Availability Group on your instance, but databases cannot belong to more than one group.

Can we configure always on without cluster?

Step 1: We need to enable SQL Always On feature on both standalone SQL instances. To do so, RDP to each server and Open SQL Server Configuration Manager. In this go to SQL Server instance properties and Enable Always On Availability Groups. … We can enable it in SQL Server 2017 or above without failover cluster.

What is a CAS server?

Client Access Server (CAS) is a server role in Microsoft Exchange Server 2013 and before. … It is the server that clients communicate with, it runs Outlook Web App, and also the ActiveSync engine and protocol for syncing client mailboxes.

What is DAG members?

A DAG is a group of up to 16 Mailbox servers that hosts a set of databases and provides automatic database-level recovery from failures that affect individual servers or databases. All servers within a DAG must be running the same version of Exchange.

What is Dag in SQL?

DAG structures in SQL databases. Lets have a general DAG structure that we want to store in an SQL database and the following. operations that we want to apply to that data: • insert a new node. • delete a node.

How do I delete an availability group?

Right-click the selected availability group or groups, and select the Delete command. In the Remove Availability Group dialog box, to delete all the listed availability groups, click OK. If you do not want to remove all the listed availability groups, click Cancel.

What is failover clustering in SQL Server?

A Windows Server Failover Cluster (WSFC) is a group of independent servers that work together to increase the availability of applications and services. SQL Server takes advantage of WSFC services and capabilities to support Always On availability groups and SQL Server Failover Cluster Instances.

How do I change my availability group listener IP address?

Alternatively, you can go to the failover cluster manager snap-in, go to the role that’s hosting your AG and right-click the listener IP and select properties–>change the IP, hit OK.

How many basic availability groups does an instance have?

You can have multiple Basic Availability Groups on the instances, but only 1 database per Basic AG. So if you have 10 databases, you can set up 10 Basic AGs.

What is difference between HA and DR in SQL Server?

SQL Server high availability (HA) is about providing service availability and 100% uptime through redundant and fault-tolerant components at the same location. Disaster Recovery (DR) is about providing service continuity and minimizing downtime through redundant & independent site in a distinct location.

How do you failover availability group in SQL?

  1. In Object Explorer, connect to a server instance that hosts a secondary replica of the availability group that needs to be failed over. …
  2. Expand the AlwaysOn High Availability node and the Availability Groups node.
  3. Right-click the availability group to be failed over, and select Failover.
